Android Navigation Box With KENWOOD upgrade Internet,facebook,WIFI,HD1080,Online movie,music

Android Navigation Box With KENWOOD upgrade Internet,facebook,WIFI,HD1080,Online movie,music
Android Navigation Box With KENWOOD upgrade Internet,facebook,WIFI,HD1080,Online movie,music Android Navigation Box With KENWOOD upgrade Internet,facebook,WIFI,HD1080,Online movie,music Android Navigation Box With KENWOOD upgrade Internet,facebook,WIFI,HD1080,Online movie,music

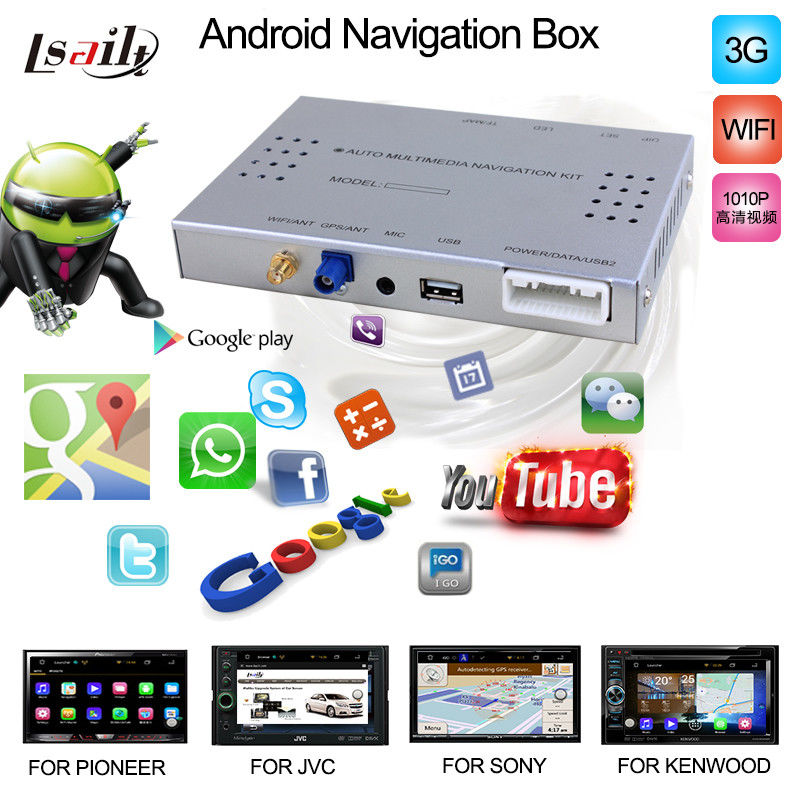

Large Image :  Android Navigation Box With KENWOOD upgrade Internet,facebook,WIFI,HD1080,Online movie,music

Product Details:
Place of Origin: Shenzhen
Brand Name: Lsailt
Certification: CE
Model Number: LLT-KW3005
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Export standard package
Delivery Time: 7 working days
Payment Terms: Western Union
Supply Ability: 100000/year

Android Navigation Box With KENWOOD upgrade Internet,facebook,WIFI,HD1080,Online movie,music

Description
RAM: 1GB Working Voltage: 9-12V
OS: Android4.2/4.4 HVGA: 800X480
MAP: IGO/PAPAGO
High Light:

android car navigation

,

android car navigation box

Android Navigation Box for Kenwood Ddx-5036 / 630bt / 4038 / 4028 / 7036 / 8036 /7025bt /5025DAB/5025bt





Android Navigation Box With KENWOOD upgrade Internet,facebook,WIFI,HD1080,Online movie,music 0



For models:



DDX- 5036/630BT/4038/4028/7036/8036/7025BT/5025DAB/5025BT/4025/3025/4055/3055/ etc. all

machine with NAVI interface .(800X480)KENWOOD



1. Vehicle: car, bus, truck



2. Brands: Toyota, Honda, Nissan, GM, Buick, Kia, HYUNDAI etc



3. Super auto supplies supermarket,car audio modification store,automobile service factory



4. Applied to the car DVD host:PIONEER/KENWOOD//JVC/ALPINE/ etc.



Features

1. Touchscreen control the navigation



2. Display(720P/1080P)HD video.



3. Support multi-language



4. With WIFI network



5. Support TMC (Traffic Message Channel)



6. Support social utilities such as Facebook, YouTube, Twitter etc



7. Support network map



8. Support live navigation



9. Support external 3G USB dongle



11..



12.Built-in 8GB memory;

13.With Android 4.2.2 operation system;



14.Support receive and send e-mail



15.Turn into navigation automatically when power on



15.Display stereo audio.EQ optional. Can be connected to original audio input AUX





Android Navigation Box With KENWOOD upgrade Internet,facebook,WIFI,HD1080,Online movie,music 1



1. Adopt high performance Mstar Cortex A9 dual-core car regular processorMST786,main frequency is 1.2GHZ;



2.With high capacity memory for DDR3 1GB,built-in 8GB capacity for you to store your file;



3.OS:Android4.2.2;



4.Support many kinds of resolutions,default 800*480;



5.Support TMC(Traffic Message Channel);



6. Support many kinds of navigation software.Support 3D live navigation.With Navigation voice mixing

    function;



7.Support touch screen operation;



8.Support upgrade OS by TF card and U Flash Disk ;



9.Support hardware reset factory Settings;



10.Support connect by wireless WIFI and 3G function. Meet your needs in different environment;



11.Support external TF/SD card,the highest support 32G;



12.Support USB 2.0 external U Flash Disk. Support external Hard Disk;



13. Support many kinds of video formats(1080P):AVI(H.264, DIVX, DIVX, XVID, rm, rmvb,  MKV(H.264,

      DIVX, DIVX, XVID), WMV, MOV, MP4(H.264, MPEG, DIVX, XVID), MPEG, MPG, FLV(H.263,H.264);



14. Supports many audio formats :WAVE,AIFF,AU,MP3,MIDI,WMA,RealAudio,VQF,OggVorbis,AAC,APE;



15. Design EQ sound choice function, achieve high quality music effect.





Android Navigation Box With KENWOOD upgrade Internet,facebook,WIFI,HD1080,Online movie,music 2





Product accessories



Mainframe

1(standard configuration)

Dedicated wire

1(standard configuration)

Antenna

1(standard configuration)

WIFI Antenna

1(standard configuration)

USB cable

1(standard configuration)

Specification

1(standard configuration)

certification

1(standard configuration)

Warranty card

1(standard configuration)

Microphone

1(standard configuration)

SPK

1(optional configuration)

Map card

1(optional configuration)

Mute dedicated line

1(optional configuration)



Specifications





CPU

1.2G~1.6G Hz

Model

Cortex A9 dual-core processor. car rule MST786

RAM

DDR3 1GB

Flash

Inand standard equipped,8GB,

Navigation storage

TF card

OS

Android 4.2/4.4

HVGA

800X480

WIFI

Came the the OS

Operating Voltage

DC(9-15)V

Operating current

Normal 400 mA@12V

Operating temperature

-20°C—+70°C

Storage temperature

-30°C—+80°C

Audio output

Left and right channels, stereo, distribute the signal and analog output

USB function

USB interface

Two-way interface, can external connect a stern line of USB HUB, USB.

Connect external 3G Dongle(WCDMA/CDMA2000/TD-SCDMA))

Maximum:32GB,support FAT/NTFS hard disk,U flash disk ; compatible

USB1.0,USB2.0

Audio file format

MP3,M4A,WAV,AMR,AWB,AAC,FLAC,MID,MIDI,XMF,RTTTL,RTX,OTA,WMA,

RA,MKA,M3U

Functions of audio media

Select songs from list, play, pause, the last song, the next song, shuffle play,

repeat playback, 3 d effects ID3  display  information of songs

Format of Video file

MPG,MPEG,DAT,VOB,TS,TRP,TP,M2TS,MTS,MP4 ,MOV,RMVB,RM ,MKV,

DIVX, AVI,ASF,WMV,FLV,TS,WEBM.

Functions of video media

Select video from list. Play, pause, the last one, the next one(Don’t support

background)

Format of  picture file

JPEG,JPG,GIF,PNG,BMP,WBMP

Functions of picture media

Select pictures from list. Play, pause, the last picture, the next picture,

Rotating   pictures, set as wallpaper.

EQ

Audio Setting

More EQ simulation control

balancing control

Acoustic control

Spectrum collection and variety shows

Internet

WIFI

After good Wi-Fi connection, select the current can be connected Wi-Fi hotspots,

enter the password to connect to the Internet after the Internet

Via your 3G/4G mobile phone can also be used as hot provide navigation

hosts (this set with reference to your mobile phone manual)

3G

3G/WCDMA/CDMA2000/TD-SCDMA standard

Support surf the Internet through 3G USB dongle or 3G mobile share next

work

MAP (GPS Navigation)

Supportable navigation software

Beauty line, DaoDaoTong, LingTu, hypergraph, navione, AutoNavi, baidu,

Google ,IGO,SYGIC

Map upgrading

Through TF card

Support 3D live navigation.(Need navigation software to support)

Support navigation sound mixing/sound sent back

Support real-time traffic(Need navigation software to support, internet)

Support multiple navigation software



File manager

Functions

Support to copy, move files between different storage medium and different

folders

Support to delete files

  • Task manager

Functions

Support the task list of activities

Support to switch the activities task

Support to close the activities task

System with Google

The browser, calculator, calendar and send E-mail,Google store

Software upgrading

TF or U flash disk

Voice Recognition

Support

System language

Multi language



Android Navigation Box With KENWOOD upgrade Internet,facebook,WIFI,HD1080,Online movie,music 3
