Product Details:
|
| Android Version: | Android 9.0 | RAM: | 3GB |
|---|---|---|---|
| ROM: | 32GB | MAP: | Google Map / IGO / Waze |
| CPU Model: | T7 | Support: | DVD , TV , DVR |
| Function: | Android Navigation | Way To Install: | Original Car Screen Installation |
| Suit For Car: | Ranger / Everest SYNC 3 System 2016-2018 | Mirrorlink: | Android & IOS Phone |
| High Light: | Bluetooth OBD Ford Focus Multimedia,LVDS Display Ford Focus Multimedia |
||

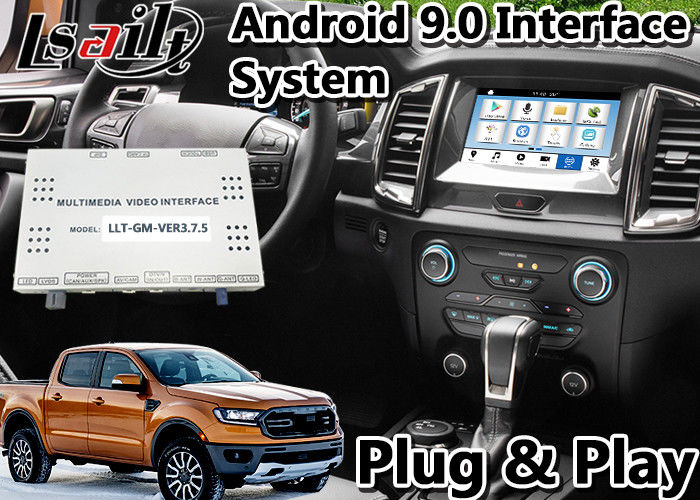

Android 9.0 Auto Interface Gps Navigation for Ranger / Everest SYNC 3 System LVDS Digital Display Bluetooth OBD
|
Support car models: For 2016-2018 (SYNC-G3)All series Everest / Tourneo / Ranger / Escape / Fusion / Expidition / Mondeo / Kuga / Mustang / F150 / F250 / F350 / F450 ect |
|||
| Android Configuration | |||
| Resolution: | 800X480 | Display: | LVDS Digital |
| SYSTEM: | Android OS9.0 | RAM: | 3GB |
| ROM: | 32GB | CPU MODEL: | T7 |
| WIFI: | Yes | BT: | Yes |
| MirrorLink: | Android and IOS | Play Store: | Yes |
| Youtube: | Yes | Quad core | 1.2GHz-1.6GHz |
| Hardware Configuration | |||
| TF Card : | Maps | ||
| Android sound: | Original car | ||
| Navi Sound: | Front LEFT and RIGHT speakers OUT sound, and can be individually controlled and displayed | ||
| AV IN: | DTV and AV1 | ||
| V OUT: | V and V1 | ||
| Camera: | Front/Left/Rear/Right(guideline and radar ) | ||
| Use Operation: | Full touch operation | ||
| Special Function | |||
| MCU and APP Update: | Connect WIFI Using Internet | ||
| Cold start Time: | 40 seconds | ||
| Hot Start: | 6 seconds | ||
| Sleep: | Yes(Loop 5 times) | ||
| Sleep memory: | Remember Last APP in parking | ||
| Installation Method: | Plug and Play | ||
| Day and Night mode: | AUTO(UI automatically switches between Day and Night) | ||
| Safe Driving: | Driving automatically closes video image(4S VER) | ||

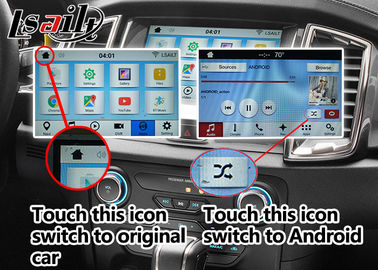

| Switching Method | |||
| Switch Mode1:(recommend) | Use steering wheel multimedia instrument buttons, select ANDROID automatic switching (sound and image) | ||
| Switch Mode2: | In radio or other screen select USB Android automatically switch android | ||
| Switch Mode3: | Use original car radio or other screen: Long press the (OK/SOUND/Body instrument button LEFT )button for 3 seconds to switch Android,Only use navigation | ||
| Switch Mode4: | Android interface and original car switch can be freely switched | ||
| Body Multimedia Control | |||
| Microphone: | Use original car | ||
| Steering Wheel: | Support up and down song, Vol | ||
| Forced Reset: | Use disc button(Long press 5 seconds) | ||
| Original Car BT in Android: | Incoming call ID only display 10 seconds and then it will automatically return to Android current APP. | ||
| A/C DISP | Support in the Android interface display | ||
| Speed Control: | Add CAM 20 km Effective | ||
Advantages
1. No damage installation to the original wires of the car with special interface cable and plug-up installation.
2. Reliable technology with original agreement.
3. Much more convenient and flexible touch controlling and navigation update.
4. It's only a upgrade to the original system. All the original functions are kept the same.
5. Much more easy after sales service by replacing the adapter module directly.
Upgrade Function:
1. Mirrorlink (Android & iOS device)
2. Online map(Google/waze); Offline map (Igo)
3. Support Multi-language
4. Support BT/WIFI/ TV/ DVD/ DVR/ 360 Panorama/ Rear View/ Front View

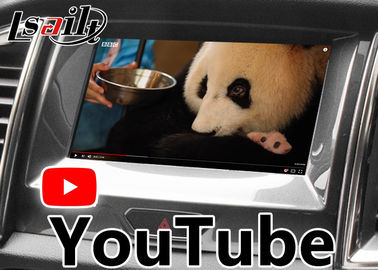

5. Download any apps from Google play store and play.(Such as YouTube, Waze, Google map, iGO)
6. Supports external video input,full touch DVD,Android system.
7.Full-digital circuit, LVDS signal processing, achieve high-definition images.
8. External RGB (800 x480) input; Andrews system connection; HD display.
9. Support trajectory reverse, Support front video input. You can choose to install 360 bird's eye view panoramic, truly achieve parking without blind area.
10.Navigation voice optional (the original car/separate speakers).Input all voice into the original car audio system! Achieve perfect sound.
11. It’s convenient for drivers and passengers to enjoy different entertainment programs since the foreground-background work independently.
12. UI of the original car UI,matching the original car style, integrated the original car system.
13. Simple plug & play installation. Realize nondestructive installation.
