Product Details:
|
CPU: | 1.6GHZ | RAM: | 2GB |
---|---|---|---|
Working Voltage: | 9-12V | HVGA: | 800*480 |
OS: | Android 5.1 | MAP: | IGO/GOOGLE MAP |
WIFI: | YES | Mirrorlink: | YES |
Highlight: | multimedia video interface,car video interface |

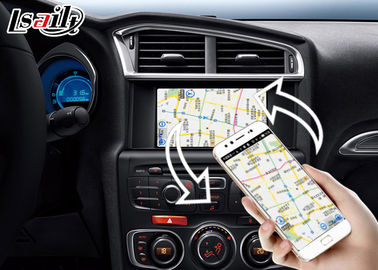

Android Navigation Video Interface for Citroen Support Google market , Google Map , WiFi , 3G
Brand: Lsailt Model: LLT-XTL-VER7.5.1
Standard Configuration: Video Interface (Trajectory Reversing,Front View,Video Input)and Android
Navigation Box;
Suitable car model: 2014~2017 Citroen C4,C5,C3-XR(Car MRN System);
Upgrading Function: Touch Android Navigation System,Trajectory Reversing,Front View,DVD,TV,360
Panoramic,DVR,TMPS etc.
1. Touchscreen control the navigation
2. Display(720P/1080P)HD video.
3. Support multi-language
4. With WIFI network
5. Support TMC (Traffic Message Channel)
6. Support social utilities such as Facebook, YouTube, Twitter etc
7. Support network map
8. Support live navigation
9. Support external 3G USB dongle
10.Built-in 8GB memory;
11.Support receive and send e-mail
12.Turn into navigation automatically when power on
13.Easy installation and use
14.Display stereo audio.EQ optional. Can be connected to original audio input AUX
15.Support LOGO modification
1. Apply to: 2014~2017 Citroen C4,C5,C3-XR (Car MRN System);
2. Can be external video input,full touch DVD,GPS and mobilephone mirror link(Android support
two-way control);
3. Provided multiple Switching ways: long press screen, double sliding, party control etc;
4. Full-digital circuit, LVDS signal processing, achieve high-definition images;
5. Navigation voice optional (the original car/separate speakers) .Input all voice into the original car
audio system! Achieve perfect sound
6. Support trajectory reverse. Support front video function. You can choose to install 360 bird's eye view
panoramic, truly achieve parking without blind area;
7. Drivers and passengers can enjoy different entertainment programs since the foreground- background work independently
8. Optional external RGB (800 x480) input, equipped with android navigation system/mobile phone
mirror link;
9. UI of the original car UI, matching the original car style, integrated the original car system; Full
pull-in installation , realize nondestructive installation;
Product Accessories |
|
Host Interface |
1(standard configuration) |
Host Android |
1(standard configuration) |
LVDS IN |
1(standard configuration) |
LVDS OUT |
1(standard configuration) |
AV IN/OUT |
1(standard configuration) |
POWER Line |
1(standard configuration) |
ANT |
1(standard configuration) |
Specification |
1(standard configuration) |
Warranty card |
1(standard configuration) |
Microphone |
1(standard configuration) |
SPK |
1(standard configuration) |
Map card |
1(standard configuration) |
Interface Parameters |
|
Model |
LLT- XTL-VER7.5.1 |
Brand |
(Lsailt) |
Car Screen Size |
7" |
Type |
Silver interface box |
Display |
LVDS/GVIF Signal transmission(MiNi USB) |
RGB Input |
One |
AV Input |
Two |
DVR Input |
One |
Front View |
One |
Rear View |
Track Reversing and Video |
Automatic or window |
Support(Special) |
General Parameters Andrews |
|
CPU |
1.6G Hz |
Model |
Cortex A9 dual-core processor,car rule MST786 |
RAM |
DDR3 2GB |
Flash |
Inand standard equipped,8GB or 16GB |
Navigation Storage |
TF card |
OS |
Android 5.1 |
HVGA |
800X480 |
WIFI |
Support |
Operating Voltage |
DC(9-15)V |
Operating Current |
Normal 400 mA@12V |
Operating Temperature |
-20°C—+70°C |
Storage Temperature |
-30°C—+80°C |
Audio Output |
Left and right channels,stereo,distribute the signal and analog output |
Function Parameters Andrews |
||
USB Function |
||
USB Interface |
Two-way interface,can external connect a stern line of USB HUB,USB. |
|
Connect external 3G Dongle(WCDMA/CDMA2000/TD-SCDMA) |
||
Maximum:32GB,support FAT/NTFS hard disk,U flash disk;compatible USB1.0,USB2.0 |
||
Audio File Format |
MP3,M4A,WAV,AMR,AWB,AAC,FLAC,MID,MIDI,XMF,RTTTL,RTX,OTA, WMA,RA,MKA,M3U |
|
Functions of Audio Media |
Select songs from list,play, pause,the last song, the next song,shuffle play,repeat playback,3 d effects ID3 display information of songs |
|
Format of Video File |
MPG,MPEG,DAT,VOB,TS,TRP,TP,M2TS,MTS,MP4 ,MOV,RMVB,RM,MKV, DIVX,AVI,ASF,WMV,FLV,TS,WEBM. |
|
Functions of Video Media |
Select video from list,Play, pause,the last one,the next one(Don’t support background) |
|
Format of Picture File |
JPEG,JPG,GIF,PNG,BMP,WBMP |
|
Functions of Picture Media |
Select pictures from list,Play,pause,the last picture,the next picture, Rotating pictures,set as wallpaper. |
|
Internet |
||
WIFI |
After good Wi-Fi connection,select the current can be connected Wi-Fi hotspots,enter the password to connect to the Internet after the Internet Via your 3G/4G mobile phone can also be used as hot provide navigation hosts (this set with reference to your mobile phone manual) |
|
3G |
3G/WCDMA/CDMA2000/TD-SCDMA standard |
|
Support surf the Internet through 3G USB dongle or 3G mobile share next work |
||
MAP (GPS Navigation) |
||
Supportable navigation software |
Beauty line,DaoDaoTong,LingTu, hypergraph,NaviOne,AutoNavi,baidu, Google,IGO,SYGIC |
|
Map Upgrading |
Through TF card |
|
Support 3D live navigation,(Need navigation software to support) |
||
Support navigation sound mixing/sound sent back |
||
Support real-time traffic(Need navigation software to support,internet) |
||
Support multiple navigation software |
||
EQ |
||
Audio Setting |
More EQ simulation control |
|
balancing control |
||
Acoustic control |
||
Spectrum collection and variety shows |
||
File Manager |
||
Functions |
Support to copy, move files between different storage medium and different folders |
|
Support to delete files |
||
|
||
Functions |
Support the task list of activities |
|
Support to switch the activities task |
||
Support to close the activities task |
||
System with Google |
The browser,calculator,calendar and send E-mail,Google store |
|
Software Upgrading |
TF or U flash disk |
|
Voice Recognition |
Support |
|
System Language |
Multi language |
