Product Details:
|
| Car Model: | 2013-2019 Cadillac CTS CUE System | CPU Model: | RK3399 |
|---|---|---|---|
| Carplay: | Wireless And Wired | Android Auto: | Wired And Wireless |
| RAM: | 4GB | ROM: | 64 GB |
| System: | Android 10 | Installation: | Plug And Play |
| Play Store: | Yes | Youtube: | Yes |
| Highlight: | Cadillac CTS CUE GPS interface,Android navigation for Cadillac CTS,CarPlay video interface with warranty |
||

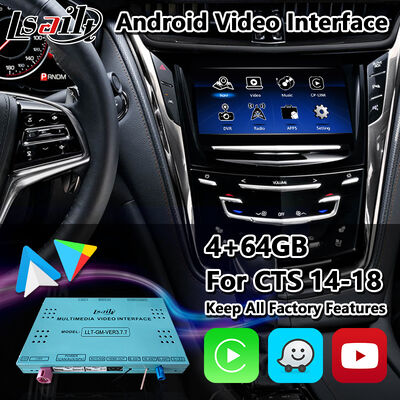

Lsailt Android GPS Navigation Video Interface for 2013-2019 Cadillac CTS CUE System with Carplay
| Android Configuration | |
| Resolution | 800X480 |
| Display | LVDS Digital(Latest chip) |
| SYSTEM: | Android OS10 |
| RAM: | 4GB |
| EMMC: | 64GB |
| CPU MODEL | Dual-core ARM Cortex-A72 1.8GHz and Quad-core ARM Cortex-A53 1.4GHz RK3399 |
| WIFI: | 2.4 / 5Ghz |
| BT: | BT5.0 Support calls and music and OBD date |
| CP / AA | Wireless and Wired |
| Mirrorlink | Wireless and Wired |
| HiCar | YES |
| Play Store: | Yes |
| GPS | UBLOX GPS Module |
| DSP | 256 DSP chip, with 16 period of EQ of DSP chip, the adjustable emperor, etc |
| Split Screen | Support |
| UI Choose | 5 sets for optional |
| Hardware Configuration | |
| TF Card : | Maximum support 64GB (Product not include TF Card) |
| Navi Sound | Addsmall speakers. If don’t listen radio, navi sound from original car speakers. |
| AV IN: | DTV |
| HD-MI OUT: | Support 720P |
| Camera/ AHD: | 4 CAMinput(guideline and radar ) |
| Reversing DET | Gray REAR-C |
| USB Port |
3 ways USB:CP and Update OS USB1 / USB2 : ADAS and Media Player |
| GPS Module | GPS and Beidou dual-mode GPS (BDS/UBLOX) |
| Special Function | |
| MCU and APP Update: | Online upgrade via WIFI |
| Cold start Time: | 30 seconds |
| Hot Start: | 6 seconds |
| Sleep: | (Cycle 5 times and restart once) |
| Sleep memory | Remember Last APP in parking |
| Installation Method | Plug and Play |
| Multimedia Control | |
| Microphone: | Use OEM |
| Steering Wheel: | Support up and down song, Vol DisPlay |
| Forced Reset | MODE Button(Long press 5 seconds) |
| OEMBT in Android: | Automatically return to the OEM BT screen |
| A/C DISP | Support in the Android interface display |
| Speed Control: | Adding camera is effective below 20KM |
Functions:
CPU: PX6 RK3399 (Dual-core ARM Cortex-A72 1.8GHz and Quad-core ARM Cortex-A53 1.4GHz)
OS System: Android 10 (Shows Android 10 actual Android 9)
Split display and picture in picture is supported.
Steering Wheel:Support up and down song,Hung up,Answer
A/C Display: Support display on the Android interface.
MCU and APP Update: Connect WIFI upgrade online
Cold start Time: 40 seconds
Hot Start: 6 seconds
Sleep: Support
Sleep memory: Remember Last APP in parking
Installation Method: Plug and Play
Navi Sound: Need add small speakers. If don’t listen OEM radio at the same time, the navi sound from original car speakers.
Microphone: Use original car
AV IN: Support
Questions and Answer:
Does this android interface support wireless carplay and android auto?
Yes, this android carplay interface support wireless carplay and wireless android auto.
Is this device compatible with my original camera and 360 camera?
It can compatible with original car rear camera and 360 camera. And also have video inputs for add reverse camera,and 360 panorama cameras.
How about the warranty of the product?
If there is any quality issue, it support 1 year for repair.
