|Function:||Navigation Interface||OS:||Android 9.0 System|
|RAM:||2GB / 3GB||ROM:||32GB|
|Rear View:||Rear Camera||360 Panoramic:||Supports|
|Navigation:||Google Map/IGO||Suitable Car Model:||2017-2019 Volkswagen Golf Tdi Variant|
audio video interface,
car stereo interface

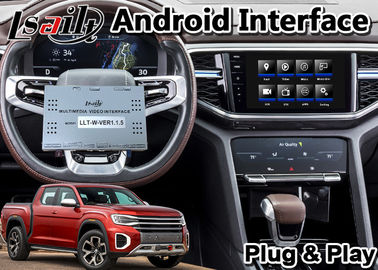

Volkswagen Golf Android 9.0 Car Video Interface for VW Touran Atlas MOB MIB
Support car models:
2014-2018 Volkswagen Golf / Skoda / Seat Leon / tiguan / polo ( MIB / MIB2) System 6.5'' / 8'' / 9.2 '' screen
|SYSTEM:||Android OS9.0||RAM:||2/3 GB|
|MirrorLink:||Android and IOS 13||Play Store:||Yes|
|TF Card :||Maps (the product will not come with TF card)|
|Android sound:||Original car|
|Navi Sound:||Need to add small speakers|
|AV IN:||DTV and AV1|
|V OUT:||V and V1|
|Camera:||Front/Left/Rear/Right(guideline and radar )|
|MCU and APP Update:||Connect WIFI Using Internet|
|Cold start Time:||40 seconds|
|Hot Start:||6 seconds|
|Sleep:||Yes(Loop 5 times)|
|Sleep memory:||Remember Last APP in parking|
|Installation Method:||Plug and Play|
|Day and Night mode:||AUTO(UI automatically switches between Day and Night)|
|Safe Driving:||Driving automatically closes video image(4S VER)|
|Switch Mode1:(recommend)||Use steering wheel multimedia instrument buttons, select AUX/USB-AUX automatic switching (sound and image)|
|Switch Mode2:||In radio or other screen select AUX/USB-AUX automatically switch android|
|Switch Mode3:||Use original car radio or other screen: Long press the MENU button for 3 seconds to switch Android.|
|Switch Mode4:||Use panel media button to cycle through Switch|
|Body Multimedia Control|
|Microphone:||Use original car|
|Steering Wheel:||Support up and down song, Vol|
|Forced Reset:||Long press HOME5 seconds system reset|
|Original Car BT in Android:||Incoming call ID only display 10 seconds and then it will automatically return to Android current APP.|
|A/C DISP||Support in the Android interface display|
|Speed Control:||Add CAM 20 km Effective|
1.Support 4k video play.
2.Support 2 way video output.
3.Support high quality music (WAV etc ).
4.Fully plug & play!
5.Mirrorlink (Android & iOS device).

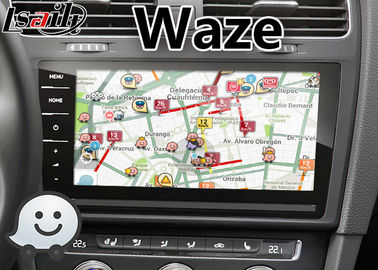

6.On line map(Google/waze); Off line map (Igo).
7.Online YouTube random play and browsing, no limits.
8.Support TV input, outside video input, sound and image synchronise HD display.

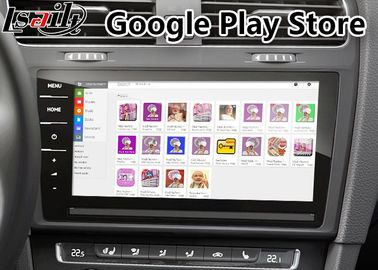

9.Download any apps from Google play store and play, no need to worry about internal massive storage space.
10.Origin car mic voice command system, automatic detective.
11.DVR/ADAS (USB video recorder, support storage and play, ADAS support track deviations, car ignition alarming, distance and speed remind), it’s a optional accessory, have to fit with our side DVR.
12.Switch by origin accessory, from AUX to Android, for non AUX version, long press the off phone button to switch to Android system. You could also switch different music track and volume by steering wheel.

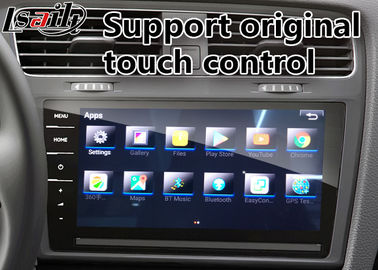

13.Android OS: we use knob, mouse or touchpad to control every part of system, the system could also be operate by resistive and capacitive touch screen with multi fingers
14.Highlight function: random map setting is supported, front rear left right cameras signal input is supported, Lexus origin rear view system is supported, could activate side view camera by turning steering wheel or turning light. Install and uninstall apps, MCU cloud update and other features.
Advantage for Upgrading
1.Nondestructive installation design, do not damage the original car lien, special interface wire, plug-up installation without wire cut;
2.Select installation function freely (handwritten navigation, BT, DVD, Reversing, 360 panoramic, automobile data recorder, TMPS, mobile Internet app etc).Make low-end surpass high-end, and make up the function defect of high-end car;
3.Technology is comparatively reliable; Do not involve in the original car agreement. Technology risks are fewer and safer comparatively;
4.Remain all functions of the original host after upgrading. If there are some wrong with navigation, it will not have influence on the original car function;
5.Convenient After-sale service; point-to-point reparation, do not involve in original car accessories, it is more simple, fewer risks, safer and more reliable than dedicated machine;
6.Real nondestructive installation of Original car type, remain all functions of the original host after upgrading and tackle the problem of the new “Three Parks of Policy” and 4S that do not support warranty;
7.Original car UI design, perfect match. Long presses touch screen or original car button to switch navigation pattern.
