Product Details:
|
| Car Models: | 2012-2016 Cadillac SRX CUE System | Carplay: | Wired And Wireless |
|---|---|---|---|
| Android Auto: | Wired & Wireless | OS: | Android 10 System |
| ROM: | 64GB | RAM: | 4GB |
| HDMI OUT: | YES | Warranty: | 1 Year |
| Installation: | Plug And Play | AC Display: | Support |
| Highlight: | Android navigation interface for Cadillac SRX,2012-2016 Cadillac SRX CUE video interface,Multimedia video interface with Android compatibility |
||

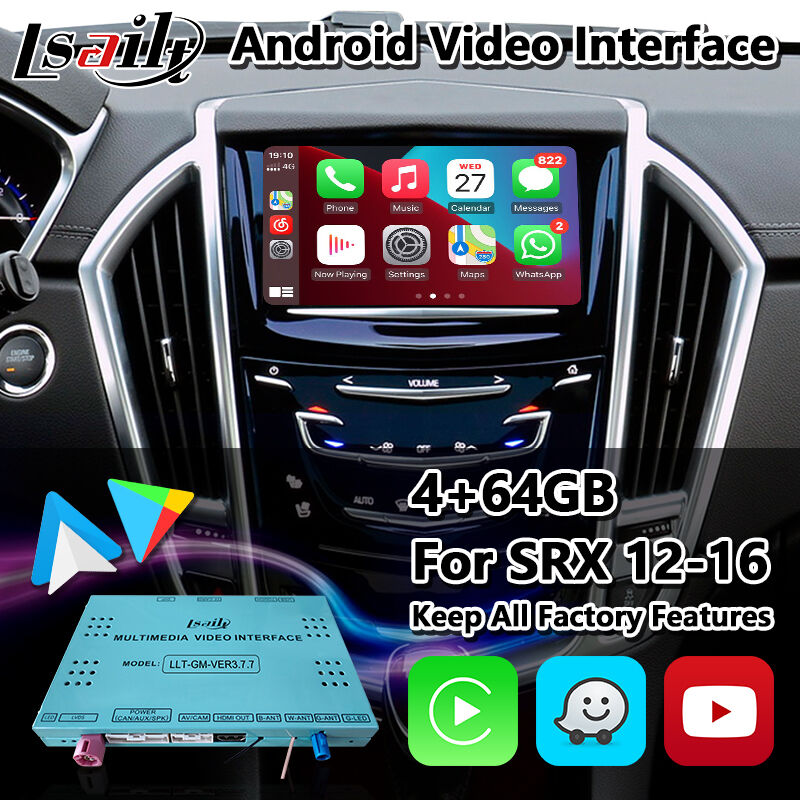

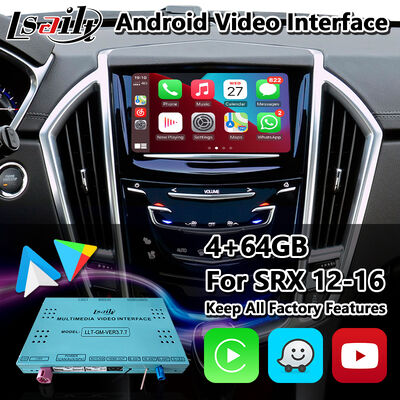

Lsailt Android Navigation Video Interface for 2012-2016 Cadillac SRX CUE System
| Android Configuration | |
| Resolution | 800X480 |
| Display | LVDS Digital(Latest chip) |
| SYSTEM: | Android OS10 |
| RAM: | 4GB |
| EMMC: | 64GB |
| CPU MODEL | Dual-core ARM Cortex-A72 1.8GHz and Quad-core ARM Cortex-A53 1.4GHz RK3399 |
| WIFI: | 2.4 / 5Ghz |
| BT: | BT5.0 Support calls and music and OBD date |
| CP / AA | Wireless and Wired |
| Mirrorlink | Wireless and Wired |
| HiCar | YES |
| Play Store: | Yes |

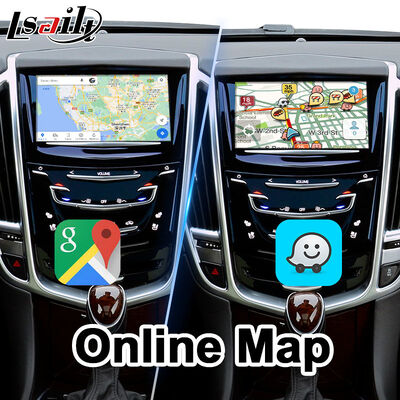

| GPS | UBLOX GPS Module |
| DSP | 256 DSP chip, with 16 period of EQ of DSP chip, the adjustable emperor, etc |
| Split Screen | Support |
| UI Choose | 5 sets for optional |
| Hardware Configuration | |
| TF Card : | Maximum support 64GB (Product not include TF Card) |
| Navi Sound | Addsmall speakers. If don’t listen radio, navi sound from original car speakers. |
| AV IN: | DTV |
| HD-MI OUT: | Support 720P |
| Camera/ AHD: | 4 CAMinput(guideline and radar ) |
| Reversing DET | Gray REAR-C |
| USB Port |
3 ways |
| GPS Module | GPS and Beidou dual-mode GPS (BDS/UBLOX) |
| Special Function | |
| MCU and APP Update: | Online upgrade via WIFI |
| Cold start Time: | 30 seconds |
| Hot Start: | 6 seconds |
| Sleep: | (Cycle 5 times and restart once) |
| Sleep memory | Remember Last APP in parking |
| Installation Method | Plug and Play |
| Multimedia Control | |
| Microphone: | Use OEM |
| Steering Wheel: | Support up and down song, Vol DisPlay |
| Forced Reset | MODE Button(Long press 5 seconds) |
| OEMBT in Android: | Automatically return to the OEM BT screen |
| A/C DISP | Support in the Android interface display |
| Speed Control: | Adding camera is effective below 20KM |
Functions:
CPU: PX6 RK3399 (Dual-core ARM Cortex-A72 1.8GHz and Quad-core ARM Cortex-A53 1.4GHz)
OS System: Android 10 (Shows Android 10 actual Android 9)
RAM: 4GB
ROM: 64GB
USB Port: 3 way (USB:CP and Update os; USB1/USB2:Add dongle or Media Player)
Carplay: Wireless and Wired
Android Auto / Hicar: Wireless and Wired
Retaining original car functions.
Built-in wireless CarPlay and Android Auto

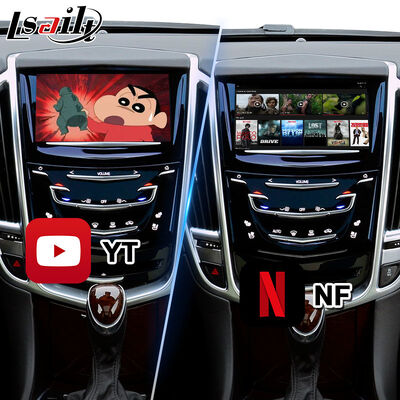

Support download Apps from play store such as YouTube, NetFlix
Support A/C temperature information display on screen.
Support MCU&APP online upgrade
Support factory camera
Support add aftermarket rear camera
Plug and play easy connection.

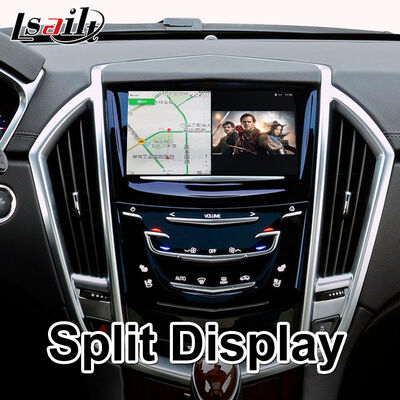

Support display split screen
Questions and Answer:
Does this android interface support connect headrest?
Yes, it have HDMI OUT. Support connect the headrest and rear seat screens.
Is this device compatible with my original camera and 360 camera?
It can compatible with original car rear camera and 360 camera. And also have video inputs for add reverse camera,and 360 panorama cameras.
Does this android interface can support my car?
Please tell us your car in which year and which model? It will be better if you can send us some pictures of your original car radio menu and center screen for confirm.
