|Product Type:||Navigation Box||Suitable Model:||MERCEDES BENZ A CLASS NTG 4.5|
|Function:||GPS Car Navigation||CPU:||Quad Core 1.6 GHz|
|Random Memory:||1 / 2 GB||Resolution:||480*800|
|Flash Memory:||16GB||Navi System:||Waze Google Map Igo Etc|
car gps navigation system,
car navigation system
Android GPS car navigation box video interface For MERCEDES BENZ C CLA CLK B A E ML GLK GLA System NTG 4.5
Upgrade Touch Navigation , WIFI , BT , MirrorLink , HD 1080P , Google MAP , Play Store , Voice control , all Android application installed
The 2012 model A class is equiped with NTG 4.5 car system, which as all know it's not that advance as Audi MMI 3 generation and BMW i-Drive, but we can do the professional work to upgrade the original NTG system to the latest Android system, with our video interface and Android navigation box, the original A class could upgrade to a new car with Navigation (Google, iGO, PAPAGO etc), rear view with flexible guide line, 360 panoramic view, facebook, twitter, youtube, all google or Android application can download and running on it. And of course if you don't like our system, you can switch to original system seamlessly. About the details please see in the rest description.
Brand name: Lsailt
Basic Spec: Video Interface (rearview, 360 view, video input) and Android Navigation Box;
Suitable car model: 2012-2014 MERCEDES BENZ C, GLK, CLK, B, A, E, GLA (Car with NTG 4.5 System)
Upgrading Function: Touch Android Navigation System, 360 view, video play, DVD,TV, DVR, TPMS etc.
1.Apply to: 2012-2014 MERCEDES BENZ C, GLK, CLK, B, A, E, GLA ( NTG 4.5 System )
2.Supports outside video signal input, full touch DVD, Android system;

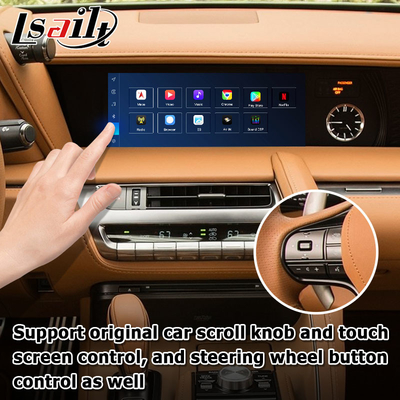

3.Multiple Switching ways: press and hold on the screen, double finger slide, party control,etc；
4.Full-digital circuit, LVDS signal processing, achieve high-definition images；
5.Navigation voice optional (the original car/separate speakers).Input all voice into the original car audio system! Achieve perfect sound;
6.Support trajectory reverse, Support front video input. You can choose to install 360 bird's eye view panoramic, truly achieve parking without blind area;
7.It’s convenient for drivers and passengers to enjoy different entertainment programs since the foreground-background work independently;
8.Optional external RGB (800 x480) input,Andrews system connection,HD display;

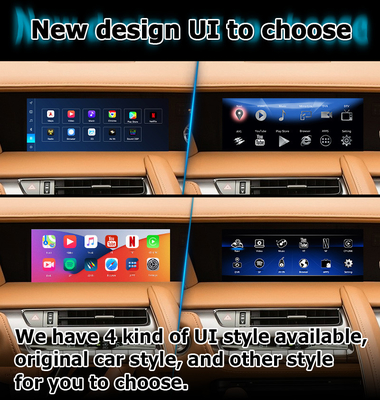

9.UI of the original car UI,matching the original car style,integrated the original car system;
10.Full pull-in installation,realize nondestructive installation;
|Way to Install||Original Car Screen Installation||Advantage||Retains All Features|
|RGB IN||Support||AV IN||AV1 or AV2|
|DVR IN||Support||Rear View||Support|
|Working voltage||9-12V||OS||Android 5.1 & 4.4|
|HVGA||800X480||MAP||GOOGLE MAP IGO WAZE|
|WIFI||Support||Specific Features||One-Key Reset|
1.Vehicle:Original car with screen models;
4.Suitable for car Brand: 2012-2014 Mercedes-benz C, GLK, CLK, B, A, E, GLA (Car NTG4.5 System)
3.Sales channels:Super auto supplies supermarket, car audio modification store,automobile service factory,standard 4S shop;
4.Suitable type:Original car with screen, support for touch control,HD display models.
1.Convenient installation,all on the plug; no need destroy the original vehicle lines, simple operation;
2.Random installation,without second time installation;
3.Simple functions, strong reliablity, highly functional;
4.Convenient to upgrading map;
5.Android:Internet access,HD video playback,full audio format,voice search,comes with WIFI,Real-Time traffic Navigation,arbitrary,automotive Android phone.
6.Why not produce all-in-one machine? Because Android system heat badly.To prevent against system crash, break down, we produce split to work more better and stable.
|Car Screen Size||Suit for original car screen|
|Type||Silver interface box|
|Display||LVDS/GVIF Signal transmission(The Board)|
|Rear View||Track Reversing and Video|
|General Parameters Andrews|
|Model||Cortex A9 Four dual-core processor,car rule PX3|
|Flash||Inand standard equipped,8GB or 16GB|
|Navigation Storage||TF card|
|MirrorLink||Android and OS The android support touch|
|Operating Current||Normal 400 mA@12V|
|Audio Output||Left and right channels,stereo,distribute the signal and analog output|
Advantage for Upgrading
1.Nondestructive installation design, do not damage the original car line, special interface wire, plug-up installation without wire cut;
2.Select installation function freely (handwritten navigation, Bluetooth, DVD, Rearview, 360 panoramic, automobile data recorder, TPMS, mobile Internet app etc).Make low-end surpass high-end, and make up the function defect of high-end car;
3.Technology is comparatively reliable; Do not involve in the original car agreement. Technology risks are fewer and safer comparatively;
4.Remain all functions of the original host after upgrading. If there are some wrong with navigation, it will not have influence on the original car function;
5.Convenient After-sale service; point-to-point reparation, do not involve in original car accessories, it is more simple, fewer risks, safer and more reliable than dedicated machine;
6.Real nondestructive installation of Original car type, remain all functions of the original host after upgrading and tackle the problem of the new “Three Parks of Policy” and 4S that do not support warranty;
7.Original car UI design, perfect match. Long presses touch screen or original car button to switch navigation pattern.
There are many ways to upgrade:
1.The way without enter into system:
1)Write the update.img file to the SD card by SD Card Tool, make a boot disk. Insert the card and power on , system will copy to flash from SD card.
2) Put update. Img file into U disk, put down the sleep din before the 10S sleep in boot process . Upgrade system from U disk When have not detected SD.
3) If have not inserted the U disk and SD card which with update. img .Put down the sleep din before the 10S sleep in boot process ,the system will come into Recovery mode automatically .
Move into the Recovery mode.
