Product Details:
|
| Car Model: | 2018-2021 Toyota Land Cruiser LC200 LC-GT Touch 3 | Built In: | Carplay And Android Auto |
|---|---|---|---|
| ROM: | 64GB | Feature: | Original Car Screen Upgrade |
| RAM: | 4GB | Support: | Front / Rear / Left / Right Camera |
| HDMI Out: | Support | CPU: | RK3399 |
| Highlight: | GXR multimedia video interface,LC200 GXR Android Carplay Interface,Toyota GXR Android Interface |
||

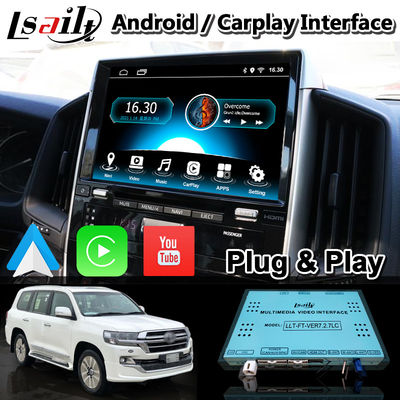

4+64GB Android 9.0 Carplay Video Interface for Toyota Land Cruiser LC200 LC-GT GXR 2018-2021 Touch 3
Android Configuration
CPU: Hexa-Core process:Dual-core ARM Cortex-A72 1.8GHz and Quad-core ARM Cortex-A53 1.4GHz
RAM: 4GB LPDDR4
ROM: 64GB EMMC
OS: Android 9.0 / 10
Display: LVDS Digital
Wifi: IEEE802.11bgn 2.4GHz
BT: BT5.0 Support calls and music and OBD date
MirrorLink: Android10 and IOS 14
CarPlay/Android Auto: Wired and Wireless CarPlay / Wired and Wireless Android Auto
HiCar: YES
Play Store: YES
YouTube: YES
UI Choose: 5 sets of optional
DSP : 256 DSP chip, with 16 period of EQ of DSP chip, the adjustable emperor, etc
| Android Version | Android 9.0 / 10 |
| Processor | PX6 RK3399 |
| RAM | 4GB |
| ROM | 64GB |
| CarPlay | Wireless / Wired |
| Android Auto | Wired / Wireless |
| Mirror Link | Included |
| Video input | LVDS |
| WiFi | 5G |
| BT | BT5.0 Support calls and music and OBD date |
| Play store | Included |
| TF card slot | Included |
| AV input | Yes |
| HDMI output | Yes |
| Cameras | Support factory and after-market cameras(guideline and radar) |
Hardware Configuration
TF Card: Maximum support 64GB (Product not include TF Card)
Navi Sound: Need add small speaker
AV IN: AV
V OUT: Not
USB Port: 3 way(USB:CP and Update os /USB1:ADAS/USB2:Media Player)
HDMI OUT: Support 720P
Camera/AHD: 4 CAM input(guideline and radar )
Reversing DET: Gray REAR-C
GPS Module: GPS and Beidou dual-mode GPS (BDS/UBLOX)
Special Function
MCU and APP : Online upgrade via WIFI
Cold start Time: 30 seconds
Hot Start: 6 seconds
Sleep: Yes(Cycle 5 times and restart once)
Sleep memory: Memory parking operation last APP
Installation Method: Plug and Play
Media Control
Microphone: Use OEM
Steering Wheel:Support up and down song, Vol DisPlay
Forced Reset: MODE Press for 6 seconds at the same time
OEM BT in Android: Automatically return to the OEM Bluetooth screen
A/C DISP: Support in the Android interface display
Speed Control: Adding camera is effective below 20KM
Optional Function
USB 4G Dongle: HuaWei E8372
| Switch Way of Working | |
| Switch Mode1 | Use the steering wheel MODE button to cycle switch |
| Switch Mode1 | In radio or other screen select AUX automatically switch android |
| Switch Mode2 | Listen to the OEM radio or other sounds, press and hold the hang up button for 3 seconds to switch Android |
| Switch Mode3 | Use panel media button to cycle switch |
| Switch Mode4 | Use the meter to select AUX to enter automatically |
Quality warranty policy
3 month free replacement and 1 year free maintenance due to product problem . Send goods in 1 or 2 days after full payment received. Customer service department will contact with you byWhatsApp, email,Skype for after-sale service .
