SYSTEM: Android OS 9.0 / 11
RAM: 4 GB
ROM: 64 GB
CPU MODEL: RK3399
BT: Yes, support OBD
CarPlay / Android Auto/HiCar: Support
MirrorLink: Android and IOS 15
Play Store / Youtube: Yes
Resolution: 1920 x 720 (12.3 and 10.25”)
Display: LVDS Digital
Resolution: 1920X720 (10.25”and 12.3”)

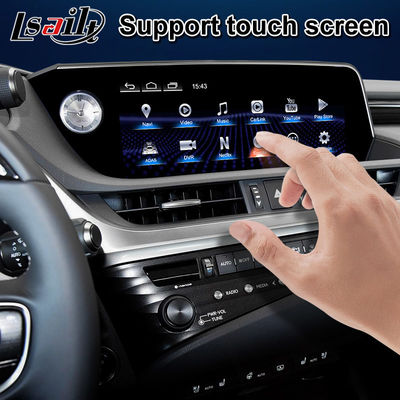

Touch Function: Support (Support two-way OEM and Android)
Screen work type: Can work independently
Touch screen type: Sapphire anti-glare
Screen brightness adjustment: Support
Style: Original Car Style
Install: Plug & play
Speed and time display: Support
Screen start time: Same OEMOEM Function: Support
OEM CAM and 360 CAM: Support
Cold start Time: 40 seconds
Hot Start: 6 seconds
Sleep: Yes(Loop 5 times)
Sleep memory: Remember Last APP in parking
Installation Method: Plug and Play
MCU and APP Update: Connect WIFI Using Internet
Body Multimedia Control:
Forced Reset: MODE (Long press 5 seconds)
Original Car BT in Android: Caller ID 10 seconds to automatically return to Android current APP
Microphone: Use original car
Steering Wheel: Support up and down song, Vol
A/C DISP: Support in the Android interface display
Speed Control: Add CAM 20 km Effective
1. The screen can work independently to ensure the normal function of the original car.
2. Support original car rear view and 360 camera.
3. Independent control of brightness, automatic switching of day and night mode.
4. The original car with CarPlay&Carlife models supports OEM touch.
5. IPS wide viewing angle high-brightness high-resolution digital LED screen (1920X720);
6. Sapphire anti-glare capacitive touch screen, no reflection under strong light, close to the OEM screen.
7. The design is strictly in accordance with the definition of the OEM screen interface, the screen part is completely plugged, and no circuit is modified to ensure the cleanliness and safety of the screen!
8. The screen reserves an independent high-resolution LVDS interface, which is convenient for adding high-definition equipment.
||6 core1.8G (2 core A72 4 core A53) Hexa-Core process: Dual-core ARM Cortex-A72 1.8GHz and Quad-core ARM Cortex-A53 1.4GHz

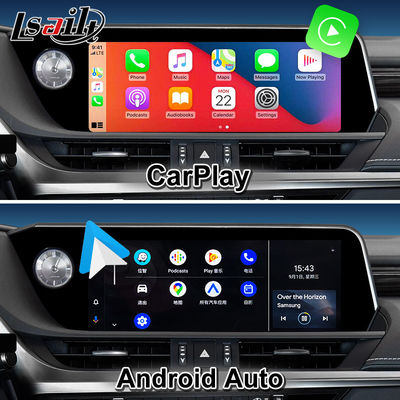

||Wired,Wireless CarPlay,Android Auto,HiCar
||Plug and play
USB0-OTG wired carplay
USB1:U disk playback and ADAS
USB2: U disk playback and 3G/4G dongle
||HD input, AV input, radio module input (Japanese version other country models)
||System USB upgrade, MCU online update
||Support unlimited downloads on Google Store
