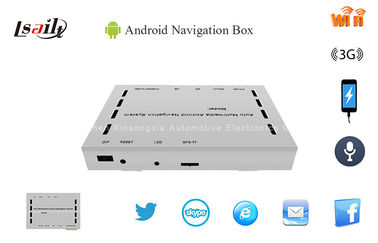

Car GPS Navigation Box with Pioneer / / JVC / Kenwood

Car GPS Navigation Box with Pioneer /  / JVC / Kenwood
Car GPS Navigation Box with Pioneer /  / JVC / Kenwood Car GPS Navigation Box with Pioneer /  / JVC / Kenwood

Large Image :  Car GPS Navigation Box with Pioneer / / JVC / Kenwood

Product Details:
Place of Origin: China
Brand Name: Lsailt
Certification: CE
Model Number: LLT-PR3115
Payment & Shipping Terms:
Minimum Order Quantity: 50sets
Price: Negotiation
Packaging Details: Gift Package with color inner box / Compressed Industrial Package with Bubble bag, Neutral Carton
Delivery Time: Within 3 Working Days for less than 500 PCS
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000PCS/Month

Car GPS Navigation Box with Pioneer / / JVC / Kenwood

Packing: Standard Export Carton GR/WT: 1.5KG/SET
SIZE: 155*105*25(MM) Working Voltage: 9-12V
OS: Android4.2/4.4 MAP: IGO/PAPAGO
High Light:

android car navigation


android navigation device

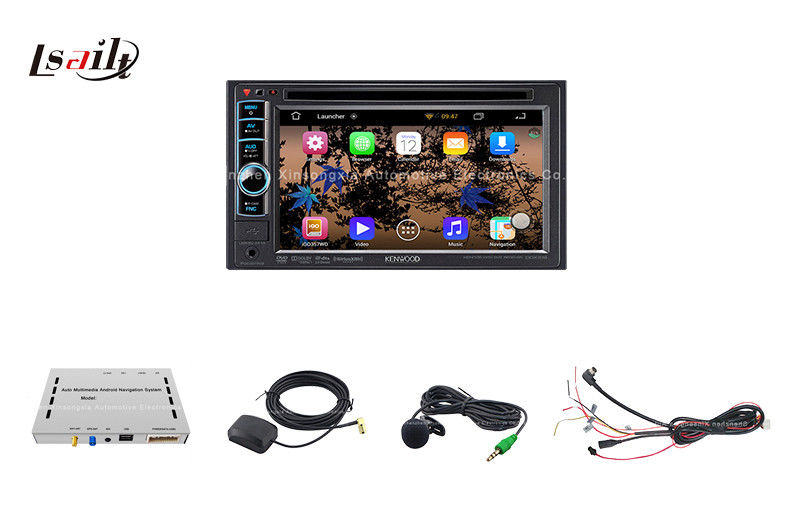

ADD-on Android GPS Box Came with Pioneer//JVC/Kenwood Head Unit , 800*480 / 480*324 / Wi-Fi / 3G

products description



The Best

Super-strong Dual-core processor: Cortex A9 1.2GHz

The Strongest compatibility: Match up with different screen and display affection

Maximum Video formats: AVI (H. 264, DIVX, DIVX, XVID, rm, rmvb, MKV (H. 264, DIVX, DIVX, XVID), WMV, MOV, MP4 (H. 264, MPEG, DIVX, XVID), MPEG, MPG, FLV (H. 263, H. 264)

Support maximum 32G external U Flash Disk and Hard Disk


Support Maximum 32G external TF/SD card

Operating system: Android 4.2/4.4 more stable!

Support varieties of resolution, Maximum 800*480


External E-dog with Full frequency radar LDT

Support touch screen control, and share a touch screen

Reset the factory settings


Wi-Fi Hotspot Tethering, Wi-Fi wireless Internet and 3G Internet

USB 2.0 OTG HOST port which can connect computer and storage space can connect this machine. Vast of Audio format: WAVE, AIFF, AU, MP3, MIDI, WMA,

RealAudio, VQF, OggVorbis, AAC, APE; Support AVIN

main functions

Audio Experience with EQ optional function


USB 2.0 external U flash disk, Hard Disk


In-Car Entertainment


Support TMC (Traffic Message Channel)


Compatible with Multiple Navigation Software and Maps cooperated, Support 3D Live Navi and Sound


mixing Output Navi


Touch screen Control


Software Upgrade through TF card and U flash disk


Support External TF/SD card reach to 32G



Product parameter


1.2G~1.6G Hz


Cortex A9 dual-core processor. car rule KW3005




Inand standard equipped,8GB,

Navigation storage

TF card


Android 4.2/4.4




Came the the OS

Operating Voltage


Operating current

Normal 400 mA@12V

Operating temperature


Storage temperature


Audio output

Left and right channels, stereo, distribute the signal and analog output

USB function

USB interface

Two-way interface, can external connect a stern line of USB HUB, USB.

Connect external 3G Dongle(WCDMA/CDMA2000/TD-SCDMA))

Maximum:32GB,support FAT/NTFS hard disk,U flash disk ; compatible USB1.0,USB2.0

Audio file format


Functions of audio media

Select songs from list, play, pause, the last song, the next song, shuffle play, repeat playback, 3 d effects ID3  display  information of songs

Format of Video file


Functions of video media

Select video from list. Play, pause, the last one, the next one(Don’t support background)

Format of  picture file


Functions of picture media

Select pictures from list. Play, pause, the last picture, the next picture, Rotating   pictures, set as wallpaper.



After good Wi-Fi connection, select the current can be connected Wi-Fi hotspots, enter the password to connect to the Internet after the Internet

Via your 3G/4G mobile phone can also be used as hot provide navigation hosts (this set with reference to your mobile phone manual)


3G/WCDMA/CDMA2000/TD-SCDMA standard

Support surf the Internet through 3G USB dongle or 3G mobile share next work

MAP (GPS Navigation)

Supportable navigation software

Beauty line, DaoDaoTong, LingTu, hypergraph, navione, AutoNavi, baidu,Google ,IGO,SYGIC

Map upgrading

Through TF card

Support 3D live navigation.(Need navigation software to support)

Support navigation sound mixing/sound sent back

Support real-time traffic(Need navigation software to support, internet)

Support multiple navigation software


Audio Setting

More EQ simulation control

balancing control

Acoustic control

Spectrum collection and variety shows

File manager


Support to copy, move files between different storage medium and different folders

Support to delete files

  • Task manager


Support the task list of activities

Support to switch the activities task

Support to close the activities task

System with Google

The browser, calculator, calendar and send E-mail,Google store

Software upgrading

TF or U flash disk

Voice Recognition


System language

Multi language


Pcs/Ctn: 20pcs/Ctn
Trade Terms FOB
Size: 155*105*25mm
GR: 1.5KG/set
Payment Trems: TT/Western Union/Paypal/LC
Delivery Time 3-5 Businese days after received your payment

1. In 2-3 days after got T/T if under 100pcs.
2. In 3-5 days after got T/T if less than 500pcs.
3. In 1 week after got T/T if less than 1000pcs.
4. More than 1000pcs, delivery will be made in 7-15 days after got T/T.


2 year Guarantee and Free service Period: 12 month

1. Returned goods:

Products within 7 days from the date of purchase, we are prepared to return it for free if a failure under normal use and products were identified for quality problem of the product itself and the attachment is complete, the packaging is in good condition and the appearance is no scratches.
2.  Replacing goods:
Products within 3 months from the date of purchase, we are prepared to return the same product for free after the examination is indeed the problem of the product itself. Visible damaged product only provides warranty service and the replacement provision expires. Special machine products except for gifts over the period of the transportation freights shall be borne by both parties.
