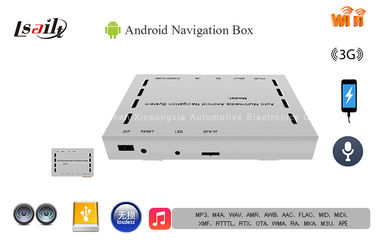

Vehicle JVC Android Navigation Box with Plug and Play , 3G / Wifi HighDefinitions 800*480

Product parameter

CPU

1.2G~1.6G Hz

Model

Cortex A9 dual-core processor. car rule KW3005

RAM

DDR3 1GB

Flash

Inand standard equipped,8GB,

Navigation storage

TF card

OS

Android 4.2/4.4

HVGA

800X480

WIFI

Came the the OS

Operating Voltage

DC(9-15)V

Operating current

Normal 400 mA@12V

Operating temperature

-20°C—+70°C

Storage temperature

-30°C—+80°C

Audio output

Left and right channels, stereo, distribute the signal and analog output

USB function

USB interface

Two-way interface, can external connect a stern line of USB HUB, USB.

Connect external 3G Dongle(WCDMA/CDMA2000/TD-SCDMA))

Maximum:32GB,support FAT/NTFS hard disk,U flash disk ; compatible USB1.0,

USB2.0

Audio file format

MP3,M4A,WAV,AMR,AWB,AAC,FLAC,MID,MIDI,XMF,RTTTL,RTX,OTA,WMA,RA,

MKA,M3U

Functions of audio media

Select songs from list, play, pause, the last song, the next song, shuffle play, repeat playback, 3 d effects ID3  display  information of songs

Format of Video file

MPG,MPEG,DAT,VOB,TS,TRP,TP,M2TS,MTS,MP4 ,MOV,RMVB,RM ,MKV,DIVX, AVI,ASF,WMV,FLV,TS,WEBM.

Functions of video media

Select video from list. Play, pause, the last one, the next one(Don’t support background)

Format of  picture file

JPEG,JPG,GIF,PNG,BMP,WBMP

Functions of picture media

Select pictures from list. Play, pause, the last picture, the next picture, Rotating   pictures, set as wallpaper.

Internet

WIFI

After good Wi-Fi connection, select the current can be connected Wi-Fi hotspots, enter the password to connect to the Internet after the Internet

Via your 3G/4G mobile phone can also be used as hot provide navigation hosts (this set with reference to your mobile phone manual)

3G

3G/WCDMA/CDMA2000/TD-SCDMA standard

Support surf the Internet through 3G USB dongle or 3G mobile share next work

MAP (GPS Navigation)

Supportable navigation software

Beauty line, DaoDaoTong, LingTu, hypergraph, navione, AutoNavi, baidu,Google ,IGO,SYGIC

Map upgrading

Through TF card

Support 3D live navigation.(Need navigation software to support)

Support navigation sound mixing/sound sent back

Support real-time traffic(Need navigation software to support, internet)

Support multiple navigation software

EQ

Audio Setting

More EQ simulation control

balancing control

Acoustic control

Spectrum collection and variety shows

File manager

Functions

Support to copy, move files between different storage medium and different folders

Support to delete files

• Task manager

Functions

Support the task list of activities

Support to switch the activities task

Support to close the activities task

System with Google

The browser, calculator, calendar and send E-mail,Google store

Software upgrading

TF or U flash disk

Voice Recognition

Support

System language

Multi language
