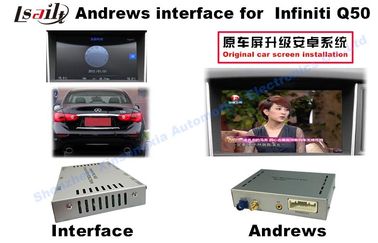

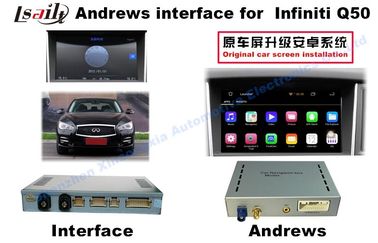

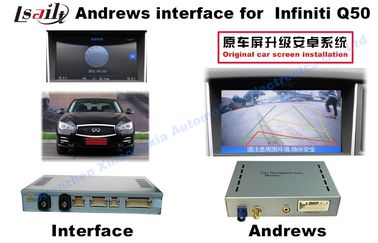

2015 Or 2016 Infiniti Q50 Android Car Interface 9-12v Working Voltage

Advantage for Upgrading

1.Nondestructive installation design, do not damage the original car lien, special interface wire, plug-up installation without wire cut;

2.Select installation function freely (handwritten navigation, BT, DVD, Reversing, 360 panoramic, automobile data recorder, TMPS, mobile Internet app etc).Make low-end   surpass high-end, and make up the function defect of high-end car;

3.Technology is comparatively reliable; Do not involve in the original car agreement. Technology risks are fewer and safer comparatively;

4.Remain all functions of the original host after upgrading. If there are some wrong with navigation, it will not have influence on the original car function;

5.Convenient After-sale service; point-to-point reparation, do not involve in original car accessories, it is more simple, fewer risks, safer and more reliable than dedicated machine;

6.Real nondestructive installation of Original car type, remain all functions of the original host after upgrading and tackle the problem of the new “Three Parks of Policy” and 4S that do not support warranty;

7.Original car UI design, perfect match. Long presses touch screen or original car button to switch navigation pattern.

Features of Android system

Master processor:RK3188T Quad-Core Processor(RK 3188T/RK 3188/PX3)basic frequency is 1.6G.

Memory capacity:1G D D RIII,2G DD RIII optional.

Flash memory:8G E MMC Flash, maximum 64G.

OS:Android 4.4.4.

GPS receive:support AGPS function

GPS antenna:3V active antenna

GPS antenna protection:prevent the antenna short circuit

WiFi module:RTL8188/RTL8723.

BT module:RTL8723BU,support BT4.0, firmware support Bluetooth functions.

A2DP,Bluetooth telephone.

Support USB 3G dongle,WiFi can be as a hot spot output.

Support USB camera which support DVR.

Synchronizing signal:composite synchronizing signal. Separate sync signal.

Video output format:simulate RGB and CVBS composite synchronizing signal output , one of them optional.

Analog video output:Support the display position adjustment,and brightness contrast adjustment.

The resolution of the video output:800×480,1024X600,Maximum 1920X1080,Support any resolution.

Audio output:Left and right channel stereo output with audio valid indication signal.

Sound Control output:IO output or UART output.

Single track MIC input:support voice navigation, support SPDIF output.

Touchscreen interface:Support 4-wire resistive touch (support two point touch function), support serial touch, two ways to touch without modifying the hardware. Change software will be ok.

Memory card types:support maximum 64 gb TF/SD card, support read U disk, mobile hard disk storage.

USB port :USB OTG  2.0 .

Supported map software:APK install automatically or installation package .

Voltage range: 7 ~ 16v (optional 9 ~ 28V), with undervoltage shutdown (7V protection shutdown).

ACC control: ACC support delay shutdown, and SLEEP combination can be set off at any time.
