|V-OUT:||Support||Car Model:||Mazda 2/3/6/CX-3/CX-5/CX-9/MX-5|

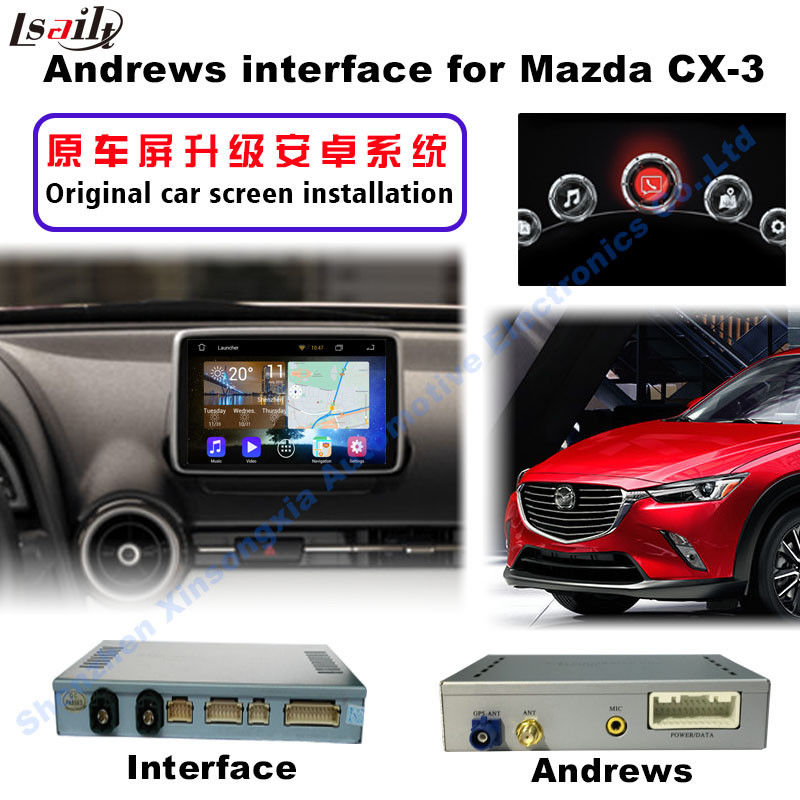

2016 Mazda Navigation Video Interface CX -3 TV DVD REAR DVR
Car Android Navigation System Video Interface box For Mazda2,3,6,CX-3,CX-5,CX-9,MX-5;Upgrade Touch Navigation,WIFI,BT, MirrorLink,HD 1080P,Google MAP, Play Store,Voice
Brand: Lsailt Model: LLT-MZD-VER6.5.1
Standard Configuration: Video Interface (Trajectory Reversing,Front View,Video Input)and Android Navigation Box;
Suitable car model:2014-2016 Mazda2,3,6,CX-3,CX-5,CX-9,MX-5(Car MZD Connect System)
Upgrading Function:Touch Android Navigation System,Trajectory Reversing,Front View,DVD,TV,360 Panoramic,DVR,TMPS etc.
Advantage for Upgrading
1.Nondestructive installation design, do not damage the original car lien, special interface wire, plug-up installation without wire cut;
2.Select installation function freely (handwritten navigation, BT, DVD, Reversing, 360 panoramic, automobile data recorder, TMPS, mobile Internet app etc).Make low-end surpass high-end, and make up the function defect of high-end car;
3.Technology is comparatively reliable; Do not involve in the original car agreement. Technology risks are fewer and safer comparatively;
4.Remain all functions of the original host after upgrading. If there are some wrong with navigation, it will not have influence on the original car function;
5.Convenient After-sale service; point-to-point reparation, do not involve in original car accessories, it is more simple, fewer risks, safer and more reliable than dedicated machine;
6.Real nondestructive installation of Original car type, remain all functions of the original host after upgrading and tackle the problem of the new “Three Parks of Policy” and 4S that do not support warranty;
7.Original car UI design, perfect match. Long presses touch screen or original car button to switch navigation pattern.
Features of Android system
Master processor:RK3188T Quad-Core Processor(RK 3188T/RK 3188/PX3)basic frequency is 1.6G.
Memory capacity:1G D D RIII,2G DD RIII optional.
Flash memory:8G E MMC Flash, maximum 64G.
GPS receive:support AGPS function
GPS antenna:3V active antenna
GPS antenna protection:prevent the antenna short circuit
BT module:RTL8723BU,support BT4.0, firmware support Bluetooth functions.
Support USB 3G dongle,WiFi can be as a hot spot output.
Support USB camera which support DVR.
Synchronizing signal:composite synchronizing signal. Separate sync signal.
Video output format:simulate RGB and CVBS composite synchronizing signal output , one of them optional.
Analog video output:Support the display position adjustment,and brightness contrast adjustment.
The resolution of the video output:800×480,1024X600,Maximum 1920X1080,Support any resolution.
Audio output:Left and right channel stereo output with audio valid indication signal.
Sound Control output:IO output or UART output.
Single track MIC input:support voice navigation, support SPDIF output.
Touchscreen interface:Support 4-wire resistive touch (support two point touch function), support serial touch, two ways to touch without modifying the hardware. Change software will be ok.
Memory card types:support maximum 64 gb TF/SD card, support read U disk, mobile hard disk storage.
USB port :USB OTG 2.0 .
Supported map software:APK install automatically or installation package .
Voltage range: 7 ~ 16v (optional 9 ~ 28V), with undervoltage shutdown (7V protection shutdown).
ACC control: ACC support delay shutdown, and SLEEP combination can be set off at any time.
1.Apply to: 2014-2016 Mazda2,3,6,CX-3,CX-5,CX-9,MX-5(Car MZD Connect System)
2.Supports external video input,full touch DVD,Android system;
3.Multiple Switching ways:long press screen,double sliding,party control,etc；
4.Full-digital circuit, LVDS signal processing, achieve high-definition images；
5.Navigation voice optional (the original car/separate speakers).Input all voice into the original car audio system! Achieve perfect sound;
6.Support trajectory reverse, Support front video input. You can choose to install 360 bird's eye view panoramic, truly achieve parking without blind area;
7.It’s convenient for drivers and passengers to enjoy different entertainment programs since the foreground-background work independently;
8.Optional external RGB (800 x480) input,Andrews system connection,HD display;
9.UI of the original car UI,matching the original car style,integrated the original car system;
10.Full pull-in installation,realize nondestructive installation;
1.Vehicle:Original car with screen models;
4.Suitable for car Brand: 2014-2016 Mazda2,3,6,CX-3,CX-5,CX-9,MX-5(Car MZD Connect System);
3.Sales channels:Super auto supplies supermarket,car audio modification store,automobile service factory,standard 4S shop;
4.Suitable type:Original car with screen,support for touch control,HD display models.
1.Convenient installation,all on the plug;DO not destroy the original vehicle lines,simple operation;
2.Random installation,without secondary installation;
3.Simple functions,strong stability,more useful;
4.Convenient to upgrading map;
5.Android:Internet access,HD video playback,full audio format,voice search,comes with WIFI,Real-Time traffic Navigation,arbitrary,automotive Android phone.
6.Why not produce all-in-one machine? Because Android system heat badly.To prevent against crashes,break down,we produce split to work more better and stable.
Car Screen Size
Silver interface box
LVDS/GVIF Signal transmission(The Board)
Track Reversing and Video
General Parameters Andrews
Cortex A9 Four dual-core processor,car rule PX3
Inand standard equipped,8GB or 16GB
Android and OS The android support touch
Normal 400 mA@12V
Left and right channels,stereo,distribute the signal and analog output
