Product Details:
|
| Classification: | GPS | Suitable Model: | MERCEDES-BENZ C CLASS |
|---|---|---|---|
| Main Function: | GPS Navigation | Android Version: | 6.0 7.1 8.0 |
| Navigation App: | Google Map, IGO, WAZE | Definition Support: | 480*800 |
| High Light: | gps car navigator,gps navigation devices |
||

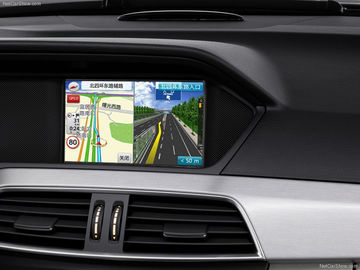

Android GPS navigation box video interface box For Mercedes-Benz C, CLA, CLK, B, A, E, ML, GLK, GLA ( NTG-4.5 SYSTEM )
Upgrade Touch Navigation, WI-FI, BT, Mirror Link, cast screen, HD 1080P, Google MAP, Play Store, Voice,
WIth first generation W202 launched in 1993, in a period of time C class is the cheapest Mercedes-benz saloon car, but the equip level is not even low, it's the first midsize saloon car equiped with ABS, air bag, turn out to be the safest midsize car in 1990s, the successer come later keep going more luxury and more high tech. The W204 edition launched in 2007 has finally equiped with multimedia system, which is much later than it's German competiter like BMW i- Drive and Audi MMI, it's slow, ugly, and only equip with very rarely function, fortunately, we have the solution.
The video interface and Andorid navigation box for Mercedes-benz C class are build specially, the Quad core 1.6 GHz CPU means much better performance than the slow NTG 4.5 system, you can run any app you like in the same time, include every Android app you like, include facebook, google map, iGO, waze, music and video play, all these app can run on the same time perfectly. More, you can choose something optional like rearview, front view, 360 degree full sight, data video record on it. If you don't like you can switch back to origin car system with just single click, simpe install, easy to operate and perfectly work.
Universal Product Information
| Origin | Shenzhen | Trademark | Lsailt |
| Product Model | LLT-BENZ-VER2.0.1 | Standard | CCC,CE |
| Type | Android Video Interface | Use | Automotive |
Product Description
1.Apply to: 2012-2014 Mercedes-benz C, GLK, CLK, B, A, E, GLA (Car NTG-4.5 System)
2.Supports external video input, full touch HD DVD, Android system;
3.Multiple Switching ways: press and hold on the screen, double finger sliding, party control, etc；
4.Full-digital circuit, LVDS signal processing, achieve high-definition images；
5.Navigation voice optional (the original car/separate speakers).Input all voice into the original car audio system! Achieve perfect sound;
6.Support trajectory reverse, Support front video input. You can choose to install 360 bird's eye view panoramic, truly achieve parking without blind area;
7.It’s convenient for drivers and passengers to enjoy different entertainment programs since the foreground-background work independently;
8.Optional external RGB (800 x480) input,Andrews system connection,HD display;
9.UI of the original car UI,matching the original car style,integrated the original car system;
10.Full pull-in installation,realize nondestructive installation;
Hardware
Master processor:RK3188T Quad-Core Processor(RK 3188T/RK 3188/PX3)basic frequency is 1.6G.
Memory capacity:1G DDRIII,2G DDRIII optional.
Flash memory:8G MMC Flash, maximum 64G.
OS:Android 4.4.
GPS receive:support AGPS function
GPS antenna:3V active antenna
GPS antenna protection:prevent the antenna short circuit
WiFi module:RTL8188/RTL8723.
BT module:RTL8723BU,support BT4.0, firmware support Bluetooth functions.
A2DP,Bluetooth telephone.
Support USB 3G dongle,WiFi can be as a hot spot output.
Support USB camera which support DVR.
Synchronizing signal:composite synchronizing signal. Separate sync signal.
Video output format:simulate RGB and CVBS composite synchronizing signal output , one of them optional.
Analog video output:Support the display position adjustment,and brightness contrast adjustment.
The resolution of the video output:800×480,1024X600,Maximum 1920X1080,Support any resolution.
Audio output:Left and right channel stereo output with audio valid indication signal.
Sound Control output:IO output or UART output.
Single track MIC input:support voice navigation, support SPDIF output.
Touchscreen interface:Support 4-wire resistive touch (support two point touch function), support serial touch, two ways to touch without modifying the hardware. Change software will be ok.
Memory card types:support maximum 64 gb TF/SD card, support read U disk, mobile hard disk storage.
USB port :USB OTG 2.0 .
Supported map software:APK install automatically or installation package .
Voltage range: 7 ~ 16v (optional 9 ~ 28V), with undervoltage shutdown (7V protection shutdown).
ACC control: ACC support delay shutdown, and SLEEP combination can be set off at any time.
What is the upgrading function of the original car screens?
It follows that the owner can realize navigation, visual trajectory reversing, DVD player, TV news, 360 panoramic, and automobile data recorder through interface box and use LCD (BYOD).Then we integrate these functions into a car which will realize touch handwriting navigation, remote control, mini system operation. After that, the original system is not changed and the system which is installed will not damage and interfere in the original car.
Suitable car model
Suitable for an original car with LCD true color display (BYOD). Due to the different model, the upgrading system is not also the same. Lsailt can perfectly and flexibly realize you car’s upgrading function (navigation, BT, visual trajectory reversing HD playback, DVD player, mobile Internet app etc.)
Advantage for Upgrading
1.Nondestructive installation design, do not damage the original car lien, special interface wire, plug-up installation without wire cut;
2.Select installation function freely (handwritten navigation, Bluetooth, DVD, Reversing, 360 panoramic, automobile data recorder, TPMS, mobile Internet app etc).Make low-end surpass high-end, and make up the function defect of high-end car;
3.Technology is comparatively reliable; Do not involve in the original car agreement. Technology risks are fewer and safer comparatively;
4.Remain all functions of the original host after upgrading. If there are some wrong with navigation, it will not have influence on the original car function;
5.Convenient After-sale service; point-to-point reparation, do not involve in original car accessories, it is more simple, fewer risks, safer and more reliable than dedicated machine;
6.Real nondestructive installation of Original car type, remain all functions of the original host after upgrading and tackle the problem of the new “Three Parks of Policy” and 4S that do not support warranty;
7.Original car UI design, perfect match. Long presses touch screen or original car button to switch navigation pattern.
| Function Parameters Andrews | ||
| USB Function | ||
| USB Interface | Two-way interface,can external connect a stern line of USB HUB,USB. | |
| Connect external 3G Dongle(WCDMA/CDMA2000/TD-SCDMA) | ||
| Maximum:32GB,support FAT/NTFS hard disk,U flash disk;compatible USB1.0,USB2.0 | ||
| Audio File Format | MP3,M4A,WAV,AMR,AWB,AAC,FLAC,MID,MIDI,XMF,RTTTL,RTX,OTA,WMA,RA,MKA,M3U | |
| Functions of Audio Media | Select songs from list,play, pause,the last song, the next song,shuffle play,repeat playback,3 d effects ID3 display information of songs | |
| Format of Video File | MPG,MPEG,DAT,VOB,TS,TRP,TP,M2TS,MTS,MP4 ,MOV,RMVB,RM,MKV,DIVX,AVI,ASF,WMV,FLV,TS,WEBM. | |
| Functions of Video Media | Select video from list,Play, pause,the last one,the next one(Don’t support background) | |
| Format of Picture File | JPEG,JPG,GIF,PNG,BMP,WBMP | |
| Functions of Picture Media | Select pictures from list,Play,pause,the last picture,the next picture,Rotating pictures,set as wallpaper. | |
| Internet | ||
| WIFI |
After good Wi-Fi connection,select the current can be connected Wi-Fi hotspots,enter the password to connect to the Internet after the Internet Via your 3G/4G mobile phone can also be used as hot provide navigation hosts (this set with reference to your mobile phone manual) |
|
| 3G | 3G/WCDMA/CDMA2000/TD-SCDMA standard | |
| Support surf the Internet through 3G USB dongle or 3G mobile share next work | ||
| MAP (GPS Navigation) | ||
| Supportable navigation software | Beauty line,DaoDaoTong,LingTu, hypergraph,NaviOne,AutoNavi,baidu,Google,IGO,SYGIC | |
| Map Upgrading | Through TF card | |
| Support 3D live navigation,(Need navigation software to support) | ||
| Support navigation sound mixing/sound sent back | ||
| Support real-time traffic(Need navigation software to support,internet) | ||
| Support multiple navigation software | ||
| File Manager | ||
| Functions | Support to copy, move files between different storage medium and different folders | |
| Support to delete files | ||
| Task Manager | ||
| Functions | Support the task list of activities | |
| Support to switch the activities task | ||
| Support to close the activities task | ||
| System with Google | The browser,calculator,calendar and send E-mail,Google store | |
| Software Upgrading | TF or U flash disk | |
| Voice Recognition | Support | |
| System Language | Multi language | |
Specifications of System
| CPU | BCM4752 |
| Frequency | 1575.42± 1 .023 MHz |
| Number of channels | 66 channel |
| Tracking sensitivity | -1 61dBm |
| Positioning accuracy | 3.0m CEP |
| Rate | 0.1 m/s |
| Data update rate | 1HZ |
| Re-capture time | <1S |
| Hot start time | 1S |
| Warm start time | 32S |
| Cold start time | 35S |
| Maximum positioning height | 18000m |
| Maximum rate | 515m/s |
| GPS Antenna | Active ceramic antenna |
| Antenna gain | 27dB |
| Antenna noise factor | <2dB |
| VSWR | 1 .5 |
| Antenna voltage | 3V± 5% |
| Antenna current | 1 5mA |
The maximum rated operating parameters table
| Operating voltage | 9-12V |
| Operating current | 300mA |
| Maximum power consumption | 2.5W |
| Shutdown current | 1 mA |
| Off Power | 30mW |
| Operating ambient temperature | -10 ºC -- +80 ºC |
| Storage temperature | -50 ºC -- +90 ºC |
wireless specifications
| Protocol standard | IEEE 802.11b, IEEE 802.11g, IEEE 802.n |
| Frequency Range | 2.400~2.4835GHz |
| Channels | 1~11(the US,Canada),1~13(China,Europe),1~14(Japan) |
| Modulation mode | 802.11b:DSSS (CCK, DQPSK, DBPSK) 802.11g/n:OFDM (BPSK, QPSK, 16QAM, 64QAM) |
| Speed of wireless | 802.11b 11, 5.5,2, 1Mbps 802.11g 54, 48, 36, 24, 18, 12, 9, 6Mbps 802.11n |
| Transmit power | 802.11b 11Mbps:15±1.5dBm 802.11g 54Mbps:13 ±1.5dBm 802.11n 135Mbps:13 ±1.5dBm |
| Sensitivity | 270M: -74dBm@10% PER 130M: -74dBm@10% PER 108M: -74dBm@10% PER 54M: -73dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -95dBm@8% PER |
| Working mode | Peer to pee(Ad-Hoc)or Centralized control type(Infrastructure) |
| Operating voltage | DC 3.3V ±0.2V |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission distance | indoor 100 M,outdoor 300 M(depend on surroundings) |
| system | WINXP/VISTA/LINUX/WINCE/WIN7 |
| Operating temperature | 0°C- 40°C |
| Operating Humidity | 10% -90% RH condensing |
| Storage temperature | -40ºC-70ºC; |
| Storage humidity | 5%-90% RH Non-condensing. |
Upgrade System
There are many ways to upgrade:
1.The way without enter into system:
1)Write the update.img file to the SD card by SD Card Tool, make a boot disk. Insert the card and power on , system will copy to flash from SD card.
2) Put update. Img file into U disk, put down the sleep din before the 10S sleep in boot process . Upgrade system from U disk When have not detected SD.
3) If have not inserted the U disk and SD card which with update. img .Put down the sleep din before the 10S sleep in boot process ,the system will come into Recovery mode automatically .
Move into the Recovery mode.
