Product Details:
|
Device Name: | Navigation Box | Car Model: | MERCEDES BENZ B CLASS |
---|---|---|---|
Work For: | GPS Car Navigation With Android System | Android OS: | 5.1 And 4.4 For You To Choose |
ROM Flash: | 8 / 16 GB | Map Software: | Google Map Waze IGO PAPAGO |
Highlight: | car navigation device,car gps navigation system |

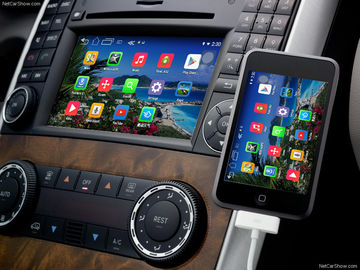

Android GPS car navigation box video interface For MERCEDES-BENZ C, CLA, CLK, B, A, E, ML, GLK, GLA (car with NTG4.5 system)
Upgrade Touch Navigation,WIFI,BT, MirrorLink,HD 1080P,Google MAP, Play Store,Voice,
Mercedes benz B class has launched into market first time in 2005, after the earlier A class, it's turn out to be the second FF layout hatchback vehicle in Mercedes-benz family, not like the A class, it comes with four door and higher size, it has more space than A class. With a series of upgradition, the second generation B glass has launched in 2011, the upgrade is more than you see, LED daylight running light makes it looks more similar than it's brother S class, the upgrade is far more beyond the outside, Mercedes-benz has launch natural gas, hydrogen and electricty model after the gasoline version way launched. With BMW 2 series launched in 2016, all German Luxury brand has it's now small size MPV.
The Mercedes benz are equiped with NTG 4.5 system, not like the Andi and BMW, this is the first car multimedia system for mercedes benz, but with Lsailt video interface and navigation box, all series of car related service can be use for the car, GPS navigation, video & music play, rearview, 360 degree view, mirrorlink, cast screen, Instagram, facebook, Google maps, all android application can install inside the system. If you don't like it, the system could switch back to origin car system by just a single click. Very easy to operate.
Brand: Lsailt
Model NO: LLT-BENZ-VER2.0.1
Standard Configuration: Video Interface (Guide line rearview, 360 panoramic view, Video Input) and Android GPS Navigation Box;
Suitable car model: 2012-2014 MERCEDES BENZ C GLK CLK B A, E, GLA (NTG 4.5 System)
Upgrading Function: Touch Android Navigation System, Trajectory Reversing, Front View, DVD, TV, 360 Panoramic, data video recorder, TPMS etc.
What is the upgrading function of the original car screens?
It follows that the owner can realize navigation, visual trajectory reversing, video & music player, TV news, 360 panoramic view, and automobile data video recorder through interface box and use LCD (BYOD).Then we integrate these functions into a car which will realize touch handwriting navigation, remote control, mini system operation. After that, the original system will not be changed and the system which is installed will not damage and interfere in the original car.
Custom Properties
How to Install | Original Car Screen Installation | Advantage | Retains All Features |
RGB IN | Support | AV IN | AV1 or AV2 |
DVR IN | Support | Rear View | Support |
Front View | Support | 360 | can be selected |
CPU | 1.6GHZ Quad core | RAM | 1GB / 2GB |
Flash | 16GB | Video support | 720P / 1080P |
Working voltage | 9-12V | OS | Android 4.4 and 5.1 |
HVGA | 800X480 | MAP | GOOGLE MAP / IGO |
Play Store | Support | Voice | Support |
WIFI | Support | Specific Features | One-Key Reset |
BT | Support | MirrorLink | Support |
Applications
1.Vehicle:Original car with screen models;
4.Suitable for car Brand: 2012-2014 MERCEDES BENZ C,GLK,CLK,B,A,E,GLA ( NTG 4.5 System)
3.Sales channels:Super auto supplies supermarket, car audio modification store,automobile service factory,standard dealer;
4.Suitable type:Original car with screen,support for touch control,HD display models.
Competitive advantages
1.Convenient installation,all on the plug; no need not destroy the original vehicle lines,simple operation;
2.Random installation,without secondary installation;
3.Simple functions,strong stability,more useful;
4.Convenient to upgrading map;
5.Android:Internet access,HD video playback,full audio format,voice search,comes with WIFI,Real-Time traffic Navigation,arbitrary,automotive Android phone.
6.Why not produce all-in-one machine? Because Android system heat badly.To prevent against crashes,break down,we produce split to work more better and stable.
Interface Parameter | |
Model | LLT-BENZ-VER2.0.1 |
Brand | (Lsailt) |
Car Screen Size | 5.8 and 7.1 " |
Type | Silver interface box |
Display | LVDS/GVIF Signal transmission(The Board) |
RGB Input | One |
AV Input | Two |
DVR Input | One |
Front View | One |
Rear View | Track Reversing and Video |
Customization | Negotiated |
MAP (GPS Navigation) | ||
Supportable navigation software | Beauty line,DaoDaoTong,LingTu, hypergraph,NaviOne,AutoNavi,baidu,Google,IGO,SYGIC | |
Map Upgrading | Through TF card | |
Support 3D live navigation,(Need navigation software to support) | ||
Support navigation sound mixing/sound sent back | ||
Support real-time traffic(Need navigation software to support,internet) | ||
Support multiple navigation software | ||
File Manager | ||
Functions | Support to copy, move files between different storage medium and different folders | |
Support to delete files | ||
Task Manager | ||
Functions | Support the task list of activities | |
Support to switch the activities task | ||
Support to close the activities task | ||
System with Google | The browser,calculator,calendar and send E-mail,Google store | |
Software Upgrading | TF or U flash disk | |
Voice Recognition | Support | |
System Language | Multi language |
Features of Android system
Master processor:RK3188T Quad-Core Processor(RK 3188T/RK 3188/PX3)basic frequency is 1.6G.
Memory capacity:1G DDR3, 2G DDR3 optional.
Flash memory:16G EMMC Flash, maximum 64G.
OS:Android 4.4 and 5.1 for you to choose
GPS receive:support AGPS function
GPS antenna:3V active antenna
GPS antenna protection:prevent the antenna short circuit
WiFi module:RTL8188/RTL8723.
BT module:RTL8723BU,support BT4.0, firmware support Bluetooth functions.
A2DP,Bluetooth telephone.
Support USB 3G dongle,WiFi can be as a hot spot output.
Support USB camera which support DVR.
Synchronizing signal:composite synchronizing signal. Separate sync signal.
Video output format: simulate RGB and CVBS composite synchronizing signal output , one of them optional.
Analog video output:Support the display position adjustment,and brightness contrast adjustment.
The resolution of the video output:800×480,1024X600,Maximum 1920X1080,Support any resolution.
Audio output:Left and right channel stereo output with audio valid indication signal.
Sound Control output:IO output or UART output.
Single track MIC input:support voice navigation, support SPDIF output.
Touchscreen interface:Support 4-wire resistive touch (support two point touch function), support serial touch, two ways to touch without modifying the hardware. Change software will be ok.
Memory card types:support maximum 64 gb TF/SD card, support read U disk, mobile hard disk storage.
USB port :USB OTG 2.0 .
Supported map software:APK install automatically or installation package .
Voltage range: 7 ~ 16v (optional 9 ~ 28V), with undervoltage shutdown (7V protection shutdown).
ACC control: ACC support delay shutdown, and SLEEP combination can be set off at any time.
