Product Details:
|
Car Model: | Chevrolet Colorado Mylink System 2015-2020 | Product Name: | Multimedia Video Interface |
---|---|---|---|
OS: | Android 10 System | Map: | Google Map / Waze |
Bluetooth: | Support | WiFi: | Support |
Mirror Link: | Android And IOS | Voice Search: | Support |
RAM: | 4GB | ROM: | 64GB |
Highlight: | Chevrolet Colorado Android Carplay Interface,Chevrolet Colorado Android Video Interface,Colorado Android Multimedia Video Interface |

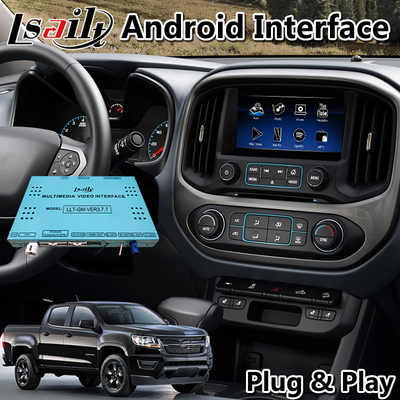

Lsailt Android Carplay Video Interface for Chevrolet Colorado Tahoe Camaro Mylink System
Android Configuration | |
Resolution | 800X480 |
Display | LVDS Digital(Latest chip) |
SYSTEM: | Android OS10 |
RAM: | 4GB |
EMMC: | 64GB |
CPU MODEL | Dual-core ARM Cortex-A72 1.8GHz and Quad-core ARM Cortex-A53 1.4GHz RK3399 |
WIFI: | 2.4 / 5Ghz |
BT: | BT5.0 Support calls and music and OBD date |
CP / AA | Wireless and Wired |
Mirrorlink | Wireless and Wired |
HiCar | YES |
Play Store: | Yes |
GPS | UBLOX GPS Module |
DSP | 256 DSP chip, with 16 period of EQ of DSP chip, the adjustable emperor, etc |
Split Screen | Support |
UI Choose | 5 sets for optional |
Hardware Configuration | |
TF Card : | Maximum support 64GB (Product not include TF Card) |
Navi Sound | Addsmall speakers. If don’t listen radio, navi sound from original car speakers. |
AV IN: | DTV |
HD-MI OUT: | Support 720P |
Camera/ AHD: | 4 CAMinput(guideline and radar ) |
Reversing DET | Gray REAR-C |
USB Port | 3 ways |
GPS Module | GPS and Beidou dual-mode GPS (BDS/UBLOX) |
Special Function | |
MCU and APP Update: | Online upgrade via WIFI |
Cold start Time: | 30 seconds |
Hot Start: | 6 seconds |
Sleep: | (Cycle 5 times and restart once) |
Sleep memory | Remember Last APP in parking |
Installation Method | Plug and Play |
Multimedia Control | |
Microphone: | Use OEM |
Steering Wheel: | Support up and down song, Vol DisPlay |
Forced Reset | MODE Button(Long press 5 seconds) |
OEMBT in Android: | Automatically return to the OEM BT screen |
A/C DISP | Support in the Android interface display |
Speed Control: | Adding camera is effective below 20KM |
Upgrade Function:
1. Mirrorlink (Android & iOS device)
2. Online map(Google/waze); Offline map (Igo)
3. Support Multi-language
4. Support BT/WIFI/ TV/ DVD/ DVR/ 360 Panorama/ Rear View/ Front View
5. Download any apps from Google play store and play.(Such as YouTube, Waze, Google map, iGO)
6. Supports external video input,full touch DVD,Android system.
7.Full-digital circuit, LVDS signal processing, achieve high-definition images.
8. External RGB (800 x480) input; Andrews system connection; HD display.
9. Support trajectory reverse, Support front video input. You can choose to install 360 bird's eye view panoramic, truly achieve parking without blind area.
10.Navigation voice optional (the original car/separate speakers).Input all voice into the original car audio system! Achieve perfect sound.
11. It’s convenient for drivers and passengers to enjoy different entertainment programs since the foreground-background work independently.
12. UI of the original car UI,matching the original car style, integrated the original car system.
13. Simple plug & play installation. Realize nondestructive installation.
