Product Details:
|
Device Type: | Car Navigation Box | Suitable Car Model: | Chevrolet Silverado With Mylink System |
---|---|---|---|
Functions Include: | Android Navigation Carplay Android Auto Youtube Play Etc | Wireless Support: | Wi-Fi Bluetooth Etc |
Android System Version: | 9.0 | Memory: | 4+64GB RAM And ROM |
Highlight: | car gps navigation system,car navigation system |

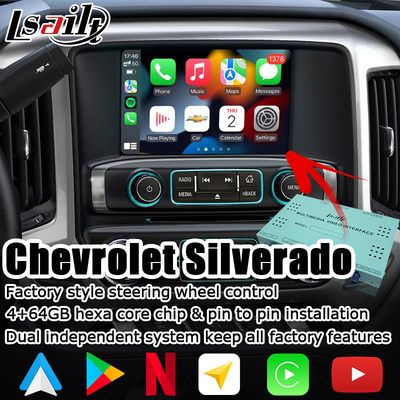

Android 9.0 Car Navigation Box , Navigation Video Interface for Chevrolet Slverado
with touch screen, wireless connection include WI-FI, BlueTooth, Mirror Link, cast screen, HD 1080P all format video play, Google MAP, Play Store, Voice command, rear or 360 all sight view.
For all Chevrolet with mylink car multimedia system since 2014! Based on Android 9.0 Impala are fully compatible!
Compatible models:
2015-2019 Suburban / Tahoe
2014-2019 Silverado
2018- Traverse
2014-2019 Colorado with mylink system
2016-2019 Impala with mylink system
2015-2018 Malibu with mylink system
2014-2018 Equinox with mylink system
2015-2019 LaCrosse with intellilink system
2015-2019 Envision with intellilink system
2015-2016 Regal with intellilink
2015-2017 Insignia with intellilink
2014-2019 ATS with CUE system
2014-2019 CTS with CUE system
2014-2019 XTS with CUE system
2014-2019 XT5 with CUE system
2014-2016 SRX with CUE system
2015-2019 Escalade with CUE system
2014-2019 Yukon with intellilink system
2014-2019 Sierra with intellilink system
2018- Terrain with intellilink system
2014-2019 Canyon with intellilink system
The Brand: Lsailt Model NO: LLT-BK-VER3.7.7
Standard Configuration: Video Interface (Flexible guideline rear view, Front View, Video Input) and Android Navigation Box;
Suit for car model: Chevrolet Impala malibu Suburban Colorado Silverado (Mylink Intellink & CUE system)
Upgrading Function: Touch Android Navigation System, Trajectory Reversing, Front View, DVD, TV, 360 Panoramic, DVR, TPMS etc.
Advantage for Upgrading
1.Non-destructive installation design, do not damage the original car line, special interface wire, plug-up installation without wire cut;
2.Select installation function freely (handwritten navigation, BT, DVD, Reversing, 360 panoramic, automobile data recorder, TPMS, mobile Internet app etc).Make low-end surpass high-end, and make up the function defect of high-end car;
3.Technology is comparatively reliable; Do not involve in the original car agreement. Technology risks are fewer and safer comparatively;
4.Remain all functions of the original host after upgrading. If there are some wrong with navigation, it will not have influence on the original car function;
5.Convenient After-sale service; point-to-point reparation, do not involve in original car accessories, it is more simple, fewer risks, safer and more reliable than dedicated machine;
6.Real nondestructive installation of Original car type, remain all functions of the original host after upgrading and tackle the problem of the new “Three Parks of Policy” and 4S that do not support warranty;

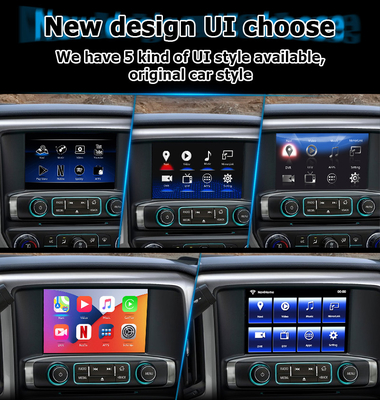

7.Original car UI design, perfect match. Long presses touch screen or original car button to switch navigation pattern.
Competitive advantages
1.Convenient installation,all on the plug;no need to destroy the original vehicle lines,simple operation;
2.Random installation,without secondary installation;
3.Simple functions,strong stability,more useful;
4.Convenient to upgrading map;
5.Android:Internet access,HD video playback,full audio format,voice search,comes with WIFI,Real-Time traffic Navigation,arbitrary,automotive Android phone.
Android system hardware description
Android’s features:
1.Android 9.0 system, 4+64GB storage 6 core 1.8GHz chip.
2. Compatible all Android apps includeYouTube, Waze, Google map, Yandex navi Real-time & offline navigationetc, free download from Google Play store.
3. Operate whole system by original touch screen.
4. Compatible to car origin rear view & front view, DVR,360 panorama, TV box, TPMS optional.
5.Wireless carplay and android auto build in.
6. Connect viaWi-Fi Bluetooth USB.
7. Could be switch to origin system with just one click on dashboard or steering wheel.
8. Voice activate navigation, mirror link.
9. Simpleplug & playinstallation.
10. Multi languages are supported, includeEnglish Pусский Français Español Português Arabic Persian Japanese Korean Hebrewetc
11.Optional Apple Carplay with extra wirelessCarplaymodule(need an iPhone later than iPhone 5 with iOS9 or above system)
Product Accessories | |
Interface box | 1(standard configuration) |
Android box | 1(standard configuration) |
LVDS IN | 1(standard configuration) |
LVDS OUT | 1(standard configuration) |
AV IN/OUT | 1(standard configuration) |
POWER Line | 2(standard configuration) |
GPS-ANT | 1(standard configuration) |
Microphone | 1(standard configuration) |
SPK | 1(standard configuration) |
Map card | 1(standard configuration) |
WIFI ANT | 1(standard configuration) |
Specification | 1(standard configuration) |
Warranty card | 1(standard configuration) |
Function Parameters Andrews | ||
USB Function | ||
USB Interface | Two-way interface,can external connect a stern line of USB HUB,USB. | |
Connect external 4G Dongle(WCDMA/CDMA2000/TD-SCDMA) | ||
Maximum:64GB,support FAT/NTFS hard disk,U flash disk;compatible USB1.0,USB2.0 | ||
Audio File Format | MP3,M4A,WAV,AMR,AWB,AAC,FLAC,MID,MIDI,XMF,RTTTL,RTX,OTA,WMA,RA,MKA,M3U | |
Functions of Audio Media | Select songs from list,play, pause,the last song, the next song,shuffle play,repeat playback,3 d effects ID3 display information of songs | |
Format of Video File | MPG,MPEG,DAT,VOB,TS,TRP,TP,M2TS,MTS,MP4 ,MOV,RMVB,RM,MKV,DIVX,AVI,ASF,WMV,FLV,TS,WEBM. | |
Functions of Video Media | Select video from list,Play, pause,the last one,the next one(Don’t support background) | |
Format of Picture File | JPEG,JPG,GIF,PNG,BMP,WBMP | |
Functions of Picture Media | Select pictures from list,Play,pause,the last picture,the next picture,Rotating pictures,set as wallpaper. | |
Internet | ||
WIFI |
After good Wi-Fi connection,select the current can be connected Wi-Fi hotspots,enter the password to connect to the Internet after the Internet Via your 5G/4G mobile phone can also be used as hot provide navigation hosts (this set with reference to your mobile phone manual) |
|
3G | 3G/WCDMA/CDMA2000/TD-SCDMA standard | |
Support surf the Internet through 3G USB dongle or 3G mobile share next work | ||
MAP (GPS Navigation) | ||
Supportable navigation software | Beauty line,DaoDaoTong,LingTu, hypergraph,NaviOne,AutoNavi,baidu,Google,IGO,SYGIC | |
Map Upgrading | Through TF card | |
Support 3D live navigation,(Need navigation software to support) | ||
Support navigation sound mixing/sound sent back | ||
Support real-time traffic(Need navigation software to support,internet) | ||
Support multiple navigation software | ||
File Manager | ||
Functions | Support to copy, move files between different storage medium and different folders | |
Support to delete files | ||
Task Manager | ||
Functions | Support the task list of activities | |
Support to switch the activities task | ||
Support to close the activities task | ||
System with Google | The browser,calculator,calendar and send E-mail,Google store | |
Software Upgrading | TF or U flash disk | |
Voice Recognition | Support | |
System Language | Multi language |
Specifications of System
CPU | BCM4752 |
Frequency | 1575.42± 1 .023 MHz |
Number of channels | 66 channel |
Tracking sensitivity | -1 61dBm |
Positioning accuracy | 3.0m CEP |
Rate | 0.1 m/s |
Data update rate | 1HZ |
Re-capture time | <1S |
Hot start time | 1S |
Warm start time | 32S |
Cold start time | 35S |
Maximum positioning height | 18000m |
Maximum rate | 515m/s |
GPS Antenna | Active ceramic antenna |
Antenna gain | 27dB |
Antenna noise factor | <2dB |
VSWR | 1 .5 |
Antenna voltage | 3V± 5% |
Antenna current | 1 5mA |
