AUDI Navigation Systems Support WIFI / Google MAP Android 4.4

AUDI Navigation Systems Support WIFI / Google MAP Android 4.4
AUDI Navigation Systems Support WIFI / Google MAP Android 4.4 AUDI Navigation Systems Support WIFI / Google MAP Android 4.4 AUDI Navigation Systems Support WIFI / Google MAP Android 4.4 AUDI Navigation Systems Support WIFI / Google MAP Android 4.4

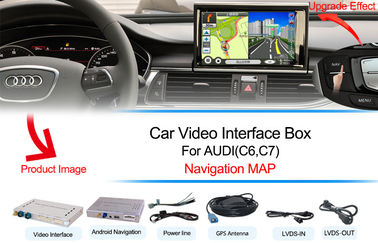

Large Image :  AUDI Navigation Systems Support WIFI / Google MAP Android 4.4

Product Details:
Place of Origin: Shenzhen
Brand Name: Lsailt
Certification: CE
Model Number: LLT-AUDI-VER4.5.1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export
Delivery Time: 7 working days
Supply Ability: 2,000pcs per month

AUDI Navigation Systems Support WIFI / Google MAP Android 4.4

Description
CPU: 1.2GHZ RAM: 1GB
Working Voltage: 9-12V HVGA: 800*480
OS: Android 4.4 MAP: IGO/GOOGLE MAP
High Light:

portable navigation systems

,

navigation system for cars

AUDI Navigation Systems Support WIFI / Google MAP Android 4.4



Brand: Lsailt                      Model: LLT-AUDI-VER4.5.1



Standard Configuration: Video Interface (Trajectory Reversing,Front View,Video Input)and Android

Navigation Box;



Suitable car model: 2010-2015AUDI A6L/S6/A8L/Q7/A4L/A5/Q5/Q3/A1(Car MMI3G System);



Upgrading Function: Touch Android Navigation System,Trajectory Reversing,Front View,DVD,TV,

360 Panoramic,DVR,TMPS etc.




AUDI Navigation Systems Support WIFI / Google MAP Android 4.4 0



1. Apply to: 2010-2015AUDI A6L/S6/A8L/Q7/A4L/A5/Q5/Q3/A1(Car MMI3G System);



2. Can be external video input,full touch DVD,GPS and mobilephone mirror link(Android support

     two-way control);



3. Provided multiple Switching ways: long press screen, double sliding, party control etc;



4. Full-digital circuit, LVDS signal processing, achieve high-definition images;



5. Navigation voice optional (the original car/separate speakers) .Input all voice into the original car

    audio system! Achieve perfect sound



6. Support trajectory reverse. Support front video function. You can choose to install 360 bird's eye view

    panoramic, truly achieve parking without blind area;



7. Drivers and passengers can enjoy different entertainment programs since the foreground-           background work independently



8. Optional external RGB (800 x480) input, equipped with android navigation system/mobile phone

    mirror link;



9. UI of the original car UI, matching the original car style, integrated the original car system; Full

    pull-in installation , realize nondestructive installation;







AUDI Navigation Systems Support WIFI / Google MAP Android 4.4 1



1. Touchscreen control the navigation



2. Display(720P/1080P)HD video.



3. Support multi-language



4. With WIFI network



5. Support TMC (Traffic Message Channel)



6. Support social utilities such as Facebook, YouTube, Twitter etc



7. Support network map



8. Support live navigation



9. Support external 3G USB dongle



10.Built-in 8GB memory;



11.Support receive and send e-mail



12.Turn into navigation automatically when power on



13.Easy installation and use



14.Display stereo audio.EQ optional. Can be connected to original audio input AUX



15.Support LOGO modification



AUDI Navigation Systems Support WIFI / Google MAP Android 4.4 2



Product Accessories

Host Interface

1(standard configuration)

Host Android

1(standard configuration)

LVDS IN

1(standard configuration)

LVDS OUT

1(standard configuration)

AV IN/OUT

1(standard configuration)

POWER Line

1(standard configuration)

ANT

1(standard configuration)

Specification

1(standard configuration)

Warranty card

1(standard configuration)

Microphone

1(standard configuration)

SPK

1(standard configuration)

Map card

1(standard configuration)



Interface Parameters

Model

 LLT- AUDI-VER4.5.1

Brand

(Lsailt)

Car Screen Size

7 or 8 "

Type

Silver interface box

Display

LVDS/GVIF Signal transmission(MiNi USB)

RGB Input

One

AV Input

Two

DVR Input

One

Front View

One

Rear View

Track Reversing and Video

Automatic or window

Support(Special)

General Parameters Andrews

CPU

1.2G~1.6G Hz

Model

Cortex A9 dual-core processor,car rule MST786

RAM

DDR3  1GB

Flash

Inand standard equipped,8GB or 16GB

Navigation Storage

TF card

OS

Android 4.2/4.4

HVGA

800X480

WIFI

Support

Operating Voltage

DC(9-15)V

Operating Current

Normal 400 mA@12V

Operating Temperature

-20°C—+70°C

Storage Temperature

-30°C—+80°C

Audio Output

Left and right channels,stereo,distribute the signal and analog output



Function Parameters Andrews

USB Function

USB Interface

 Two-way interface,can external connect a stern line of USB HUB,USB.

 Connect external 3G Dongle(WCDMA/CDMA2000/TD-SCDMA)

 Maximum:32GB,support FAT/NTFS hard disk,U flash disk;compatible

 USB1.0,USB2.0

Audio File Format

 MP3,M4A,WAV,AMR,AWB,AAC,FLAC,MID,MIDI,XMF,RTTTL,RTX,OTA,

 WMA,RA,MKA,M3U

Functions of Audio Media

 Select songs from list,play, pause,the last song, the next song,shuffle

 play,repeat playback,3 d effects ID3  display  information of songs

Format of Video File

 MPG,MPEG,DAT,VOB,TS,TRP,TP,M2TS,MTS,MP4 ,MOV,RMVB,RM,MKV,

 DIVX,AVI,ASF,WMV,FLV,TS,WEBM.

Functions of Video Media

 Select video from list,Play, pause,the last one,the next one(Don’t support

 background)

Format of  Picture File

 JPEG,JPG,GIF,PNG,BMP,WBMP

Functions of Picture Media

 Select pictures from list,Play,pause,the last picture,the next picture,

 Rotating   pictures,set as wallpaper.

Internet

WIFI

 After good Wi-Fi connection,select the current can be connected

 Wi-Fi hotspots,enter the password to connect to the Internet after the

 Internet Via your 3G/4G mobile phone can also be used as hot provide

 navigation hosts (this set with reference to your mobile phone manual)

3G

 3G/WCDMA/CDMA2000/TD-SCDMA standard

 Support surf the Internet through 3G USB dongle or 3G mobile share next

 work

MAP (GPS Navigation)

Supportable navigation software

 Beauty line,DaoDaoTong,LingTu, hypergraph,NaviOne,AutoNavi,baidu,

 Google,IGO,SYGIC

Map Upgrading

 Through TF card

 Support 3D live navigation,(Need navigation software to support)

 Support navigation sound mixing/sound sent back

 Support real-time traffic(Need navigation software to support,internet)

 Support multiple navigation software

EQ

Audio Setting

 More EQ simulation control

 balancing control

 Acoustic control

 Spectrum collection and variety shows

File Manager

Functions

 Support to copy, move files between different storage medium and

 different folders

 Support to delete files

  • Task Manager

Functions

 Support the task list of activities

 Support to switch the activities task

 Support to close the activities task

System with Google

 The browser,calculator,calendar and send E-mail,Google store

Software Upgrading

 TF or U flash disk

Voice Recognition

 Support

System Language

 Multi language
