Product Details:
|
| Device Classify: | Android 6.0 GPS Navigation Box | Compatible Mazda Models: | Mazda 2 3 6 CX-3 CX-4 CX-5 CX-9 MX-5 Etc With MZD Connect |
|---|---|---|---|
| System Version: | 9.0 | On Board Hardware: | 1.2 GHz 6 Hexa Core CPU 3 GB RAM 32 GB ROM |
| Power: | 12V DC Power Supply | Package Weight: | 2kg |
| Highlight: | gps car navigator,gps navigation devices |
||

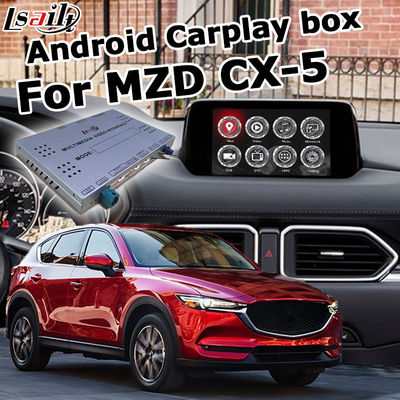

Mazda CX-5 video interface Android Box Gps with Mazda origin knob control
Android 9.0 GPS navigation box with Video Interface box For Mazda 2 3 6 Atenza CX-3 CX-4 CX-5 CX-9 MX-5 Demio Axela etc Based on Android 9.0
Control by Mazda origin shift knob and touch screen. With Optional real time navigation, Wi-Fi, Bluetooth, Mirror Link, Cast screen, HD 1080P, Google MAP, Play Store, Voice control
Suitable car model: for 2014-2017 Mazda 2 3 6 CX-3 CX-4 CX-5 CX-9 MX-5 Demio Axela Atenza etc
With latest Android 9.0 system and control by Mazda origin shift knob with touch screen, it's the perfect replacement of Mazda origin multimedia system
Android's features:
1. Based on Android 9.0 system, 3+32GB storage hexa core 1.2GHz chip.
2. Compatible all Android apps include YouTube, Waze, Google map, iGO, Real-time & offline navigation etc, free download from Google Play store.
3. Operate whole system by factory origin shift knob touch screen.
4. Compatible to car origin rear view & front view, DVR, 360 panorama, TV box, TPMS optional.
5. ADAS lane monitoring is supported with DVR.
6. Connect via Wi-Fi Bluetooth USB.
7. Could be switch to origin system with just one click on dashboard or steering wheel.
8. Voice activate navigation, mirror link.
9. Simple plug & play installation.
10. Multi languages are supported, include English русский Français Español Português Arabic Persian Japanese Korean Hebrew etc
11. UI background picture and icons could be make specially for you demanding.
12. optional carplay and android auto with it
Professional festures & hardware
1. Multi screen interactive display is supported with RGB or CVBS output.
2. Accessories like rear view, 360 bird eye camera box, DVD, DVB-T TV box, DVR, mirror link, video play via USB.
3. Support 2 HD RGB & LVDS video signal input.
4. 1080P video play supprted.
5. Voice control navigation from both factory MIC or ours.
6. Display definition 480*800.
| Resolution | 800X480 |
| Display | LVDS Digital |
| SYSTEM: | Android OS 9.0 |
| RAM: | 3GB |
| ROM: | 32GB EMMC |
| CPU MODEL | T7 |
| WIFI: | Support |
| Bluetooth: | Support |
| MirrorLink: | From Android smartphonr & iPhone |
| Microphone: | Include |
| TF Card : | For Map data |
| Play Store: | Support |
| Youtube: | Support |
| AV IN: | DTV and AV1 |
| Video OUT: | V and V1 |
| Installation Method | Plug and Play |
Hardware information & Android features
(The information are all for reference, it may will change in furture development)
Master processor: Hexa-Core Processor basic frequency is 1.2G.
Memory capacity: 3G DDRIII.
Flash memory: 32G EMMC Flash, maximum 64G.
OS: Android 9.0
GPS receive: support AGPS function
GPS antenna: 3V active antenna
GPS antenna protection: prevent the antenna short circuit
Synchronizing signal: composite synchronizing signal. Separate sync signal.
Video output format: simulate RGB and CVBS composite synchronizing signal output , one of them optional.
Analog video output: Support the display position adjustment,and brightness contrast adjustment.
The resolution of the video output: 800×480,1024X600,Maximum 1920X1080, Support any resolution.
Audio output: Left and right channel stereo output with audio valid indication signal.
Sound Control output: IO output or UART output.
Single track MIC input: support voice navigation, support SPDIF output.
Touchscreen interface: Support 4-wire resistive touch (support two point touch function), support serial touch, two ways to touch without modifying the hardware. Change software will be ok.
Memory card types: support maximum 64 gb TF/SD card, support read U disk, mobile hard disk storage.
USB port : USB OTG 2.0 .
Supported map software: APK install automatically or installation package .
Voltage range: 7 ~ 16v (optional 9 ~ 28V), with undervoltage shutdown (7V protection shutdown).
ACC control: ACC support delay shutdown, and SLEEP combination can be set off at any time.
Standard specification
1. Video interface box 1 set.
2. Specially use power cable 1 piece.
3. GPS antenna 2 pieces
4. CAN connector 1 piece
5. Video output 1 piece
6. USB connector cable 1 piece
7. Touch connector cable 1 piece
8. Small speaker 1 piece (low equip model no have)
9. LVDS connector cable 1 piece
10. Screen display cable 1 piece (different on left & right hand drive model)
Competitive advantages
1. Convenient installation, all on the plug; no need to destroy the original vehicle harness, simple operation;
2. Random installation, without secondary installation;
3. Simple functions, strong stability, highly useful;
4. Convenient to upgrading map;
5. Android:Internet access, HD video playback, full audio format, voice search, comes with WIFI, Real-Time traffic Navigation, arbitrary, automotive Android phone.
Quality warranty policy:
3 month free replacement and 1 year free maintenance.
Deliver 1 or 2 days after payment received.
Customer service will contact with you by whatsapp, email, skype to do all necessary works.
