Product Details:
|
| Classification: | Navigation Box With Android System | Suitable Vehicle Model: | Tiguan Sharan Passat Skoda Seat Etc(MQB MIB MIB2) |
|---|---|---|---|
| Function: | Cast Screen And Android GPS Navigation Like Waze Yandex Etc | Android OS: | 6.0 With 7.1 And 9.0 Upgrade |
| Main Chip Parameter: | 1.2 GHz Quad / Hexa Core | Running Memory: | 3 / 2 GB |
| High Light: | audio video interface,navigation video interface |
||

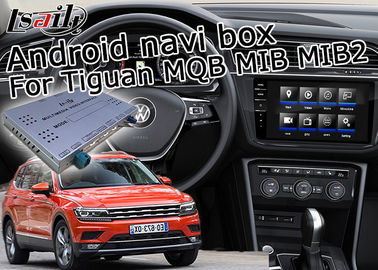

Lsailt Android System GPS Navigation box Video Interface box For Volkswagen T-ROC T-Cross Touran Teramont Atlas Tiguan Golf Passat etc MQB MIB MIB2 system
Youtube Yandex navi Google map Waze could be working with it
Demo video: https://youtu.be/Ly6uZrM2b1E
Please check with our service if your car could be compatible or not before order!
For dealer customer:
1. all UI you see could be made specially for you, need MOQ 100pcs each month.
2. The logo and the lable of machine could be made specially for you.
3. OEM is supported.
Android's features:
1. Android 6.0 /7.1 system, 2+16/3+32 GB storage Quad/Hexa core 1.2 GHz chip.
2. Compatible all Android apps include YouTube, Waze, Google map, Real-time & offline navigation etc, free download from Google Play store.
3. Compatible to car origin rear view & front view, DVR, 360 panorama, TV box, TPMS optional.
4. ADAS lane monitoring is supported with DVR.
5. Connect via Wi-Fi Bluetooth USB.
6. Could be switch to origin system with just one click on dashboard or steering wheel.
7. Voice activate navigation, mirror link.
8. Simple plug & play installation.
9. Oringinal car style GUI and it could be develop as your demand(negotiate with our services).
10. MCU cloud system upgrade with only wifi connection.
11. Nissan Infiniti original knob, steering wheel and touch screen control.
12. Multi languages are supported, include English Pусский Français Español Português Arabic Persian Japanese Korean Hebrew etc
13. Carplay & Android Auto could be install as the optional choice.
Manufacture name: Lsailt Model: LLT-W-VER 1.1.5
Standard specification: Video Interface (Rearview, Front View, Video Input) and Android Navigation Box;
Suitable vehicle model: 2016 VW Tiguan, Sharan, Passat (MQB MIB MIB2 6.5 8 9.2 inches display)
Upgrading Function: Touch Android Navigation System, Trajectory Reversing, Front View, DVD, TV, 360 degree sight view, DVR, TPMS etc.
Custom Properties
| Way to Install | Original Car Screen Installation | Advantage | Retains All Features |
| RGB IN | Support | AV IN | AV1 or AV2 |
| DVR IN | Support | Rear View | Support |
| Front View | Support | 360 | Optional |
| CPU | 1.2GHZ | RAM | 3GB/2GB |
| Flash | 16 / 32 GB | HD Video | 720P/1080P |
| Working voltage | 9-12V | OS | Android 6.0 and 7.1 8.0 upgrade |
| HVGA | 800X480 | MAP | GOOGLE MAP/waze yandex |
| Play Store | Support | Voice | Support |
| WIFI | Support | Specific Features | One-Key Reset |
| BT | Support | MirrorLink | Support |
Professional festures & hardware
1. Multi screen interactive display is supported, LVDS out put.
2. Accessories like rear view, 360 bird eye camera box, DVD, DVB-T TV box, DVR, mirror link, video play via USB.
3. Support 2 HD RGB & LVDS video signal input.
4. 1080P video play supprted.
5. Voice control navigation from both factory MIC or ours.
6. Display definition 480*800.
7. Touchscreen would be compatible with original car screen
| Resolution | 800X480 |
| Display | LVDS Digital |
| SYSTEM: | Android OS 6.0.1/7.1 |
| RAM: | 2GB/3GB |
| ROM: | 16GB/32GB EMMC |
| CPU MODEL | T3/T7 |
| WIFI: | Support |
| BT: | Support |
| MirrorLink: | From Android smartphonr & iPhone |
| Microphone: | Include |
| Play Store: | Support |
| Youtube: | Support |
| AV IN: | DTV and AV1 |
| Video OUT: | V and V1 |
| Installation Method | Plug and Play |
| Function Parameters Andrews | ||
| USB Function | ||
| USB Interface | Two-way interface,can external connect a stern line of USB HUB,USB. | |
| Connect external 3G Dongle(WCDMA/CDMA2000/TD-SCDMA) | ||
| Maximum:32GB,support FAT/NTFS hard disk,U flash disk;compatible USB1.0,USB2.0 | ||
| Audio File Format | MP3,M4A,WAV,AMR,AWB,AAC,FLAC,MID,MIDI,XMF,RTTTL,RTX,OTA,WMA,RA,MKA,M3U | |
| Functions of Audio Media | Select songs from list,play, pause,the last song, the next song,shuffle play,repeat playback,3 d effects ID3 display information of songs | |
| Format of Video File | MPG,MPEG,DAT,VOB,TS,TRP,TP,M2TS,MTS,MP4 ,MOV,RMVB,RM,MKV,DIVX,AVI,ASF,WMV,FLV,TS,WEBM. | |
| Functions of Video Media | Select video from list,Play, pause,the last one,the next one(Don’t support background) | |
| Format of Picture File | JPEG,JPG,GIF,PNG,BMP,WBMP | |
| Functions of Picture Media | Select pictures from list,Play,pause,the last picture,the next picture,Rotating pictures,set as wallpaper. | |
| Internet | ||
| WIFI |
After good Wi-Fi connection,select the current can be connected Wi-Fi hotspots,enter the password to connect to the Internet after the Internet Via your 3G/4G mobile phone can also be used as hot provide navigation hosts (this set with reference to your mobile phone manual) |
|
| 3G | 3G/WCDMA/CDMA2000/TD-SCDMA standard | |
| Support surf the Internet through 3G USB dongle or 3G mobile share next work | ||
| MAP (GPS Navigation) | ||
| Supportable navigation software | Beauty line,DaoDaoTong,LingTu, hypergraph,NaviOne,AutoNavi,baidu,Google,IGO,SYGIC | |
| Map Upgrading | Through TF card | |
| Support 3D live navigation,(Need navigation software to support) | ||
| Support navigation sound mixing/sound sent back | ||
| Support real-time traffic(Need navigation software to support,internet) | ||
| Support multiple navigation software | ||
| File Manager | ||
| Functions | Support to copy, move files between different storage medium and different folders | |
| Support to delete files | ||
| Task Manager | ||
| Functions | Support the task list of activities | |
| Support to switch the activities task | ||
| Support to close the activities task | ||
| System with Google | The browser,calculator,calendar and send E-mail,Google store | |
| Software Upgrading | TF or U flash disk | |
| Voice Recognition | Support | |
| System Language | Multi language | |
Android video interface is a kind of Andrid system upgrade from original car screen, for VW Skoda & Seat cars, you could use the buttons on central console and steering wheel and original touch screen to control everything, you could find the Android system be operate in video on top of the page.
Quality warranty policy:
3 month free replacement and 1 year free maintenance.
Deliver 1 or 2 days after payment received.
Customer service will contact with you by whatsapp, email, skype to do all necessary works.
